S7091-46R

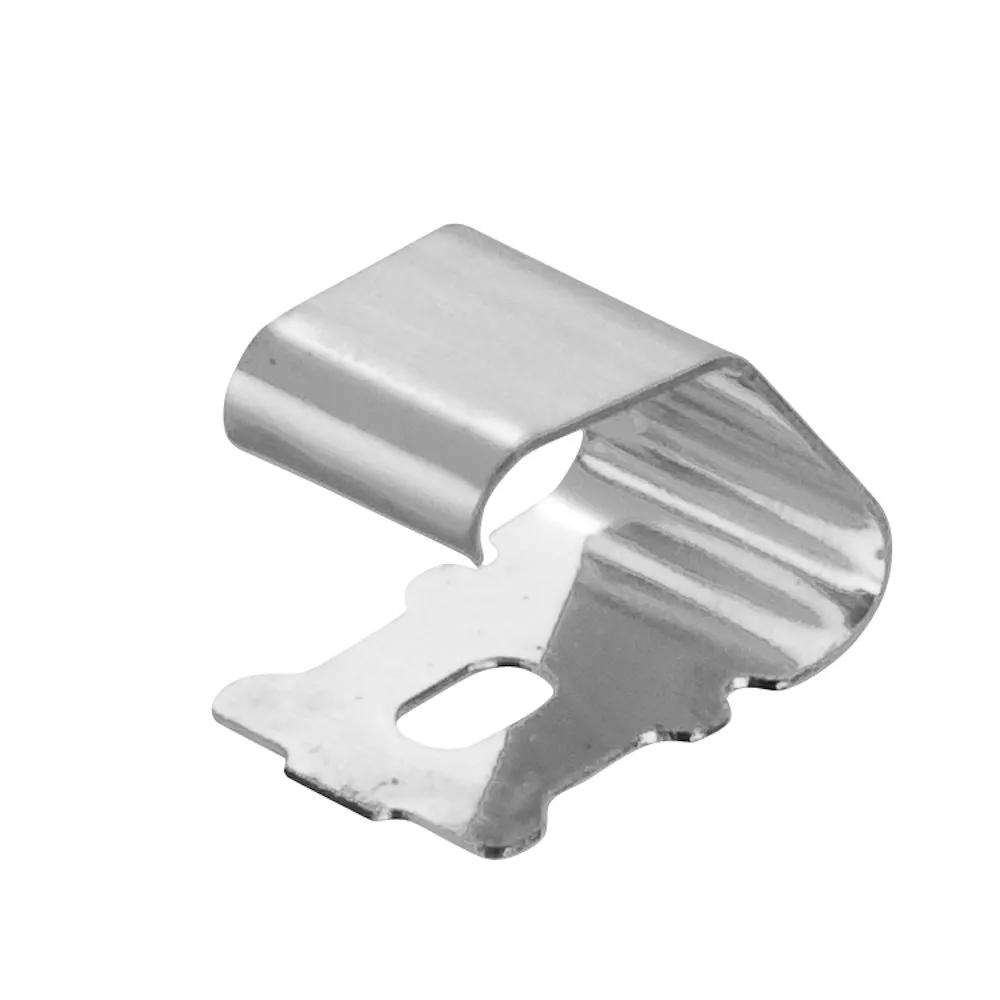

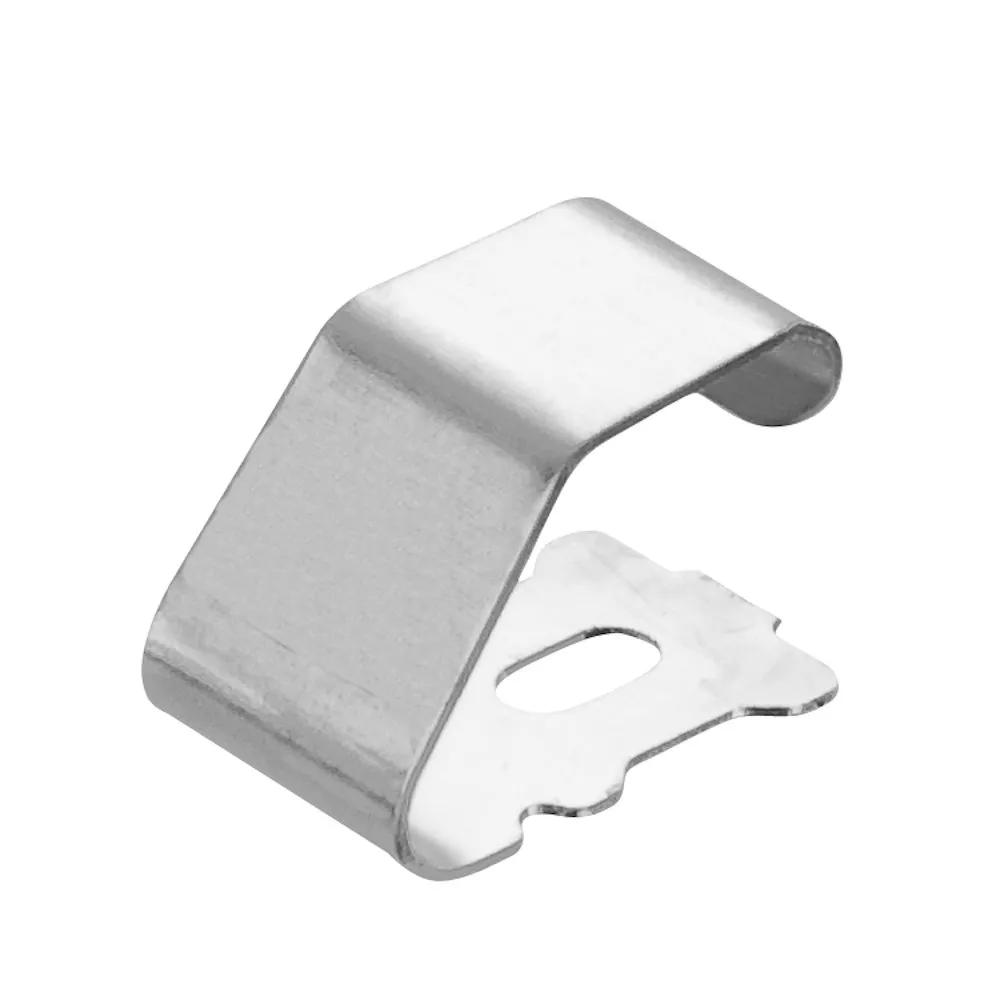

2.70mm SMT Spring Contact (T+R)
SMT Spring Contact
Loading… Check availability
11 similar products View products
Traceparts account required
Product Description
- Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
- Free height = 2.7mm. Working height = 2.3mm, Minimum = 1.9mm.
- Tin finish on contact area and termination.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Current Rating:
6A
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Titanium Copper
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.019g
Overall Dimensions (L x W x D) in mm:
4.00 x 2.50 x 2.70
Height of Connector above PCB:
2.70mm
