S7091-42R

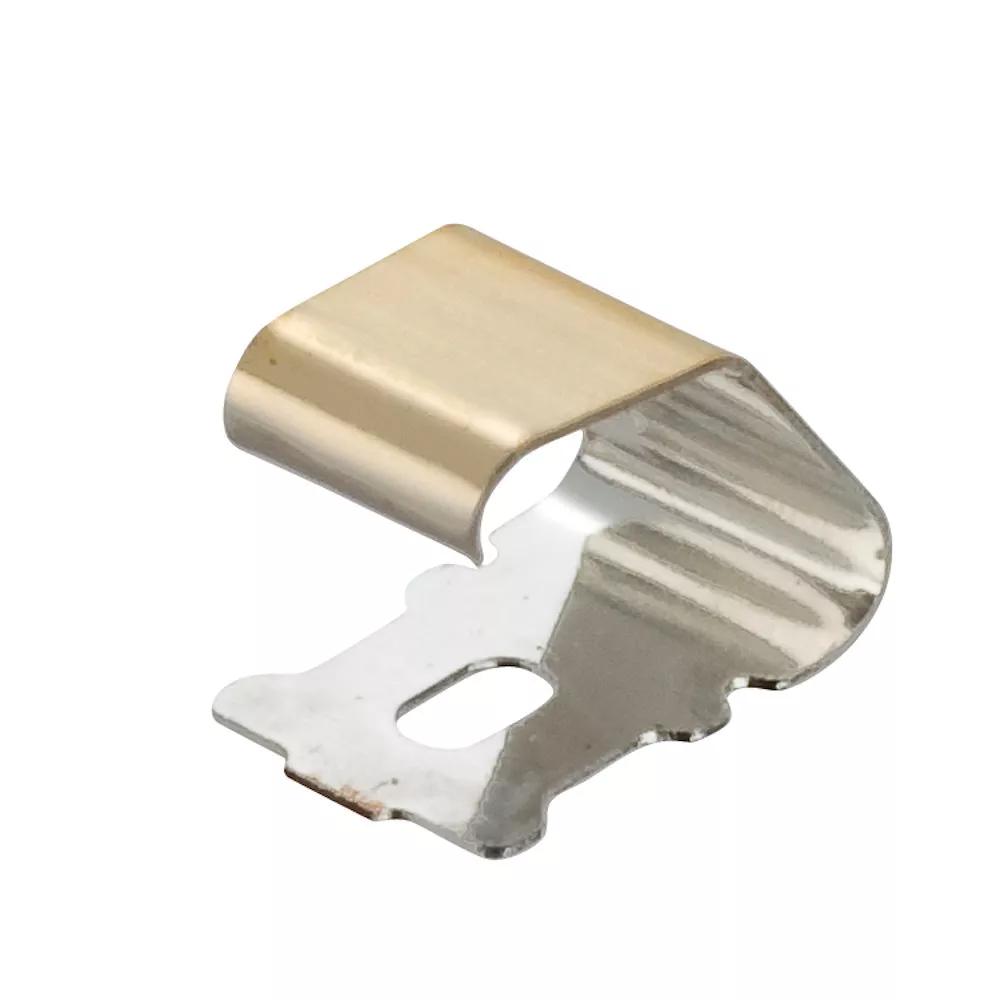

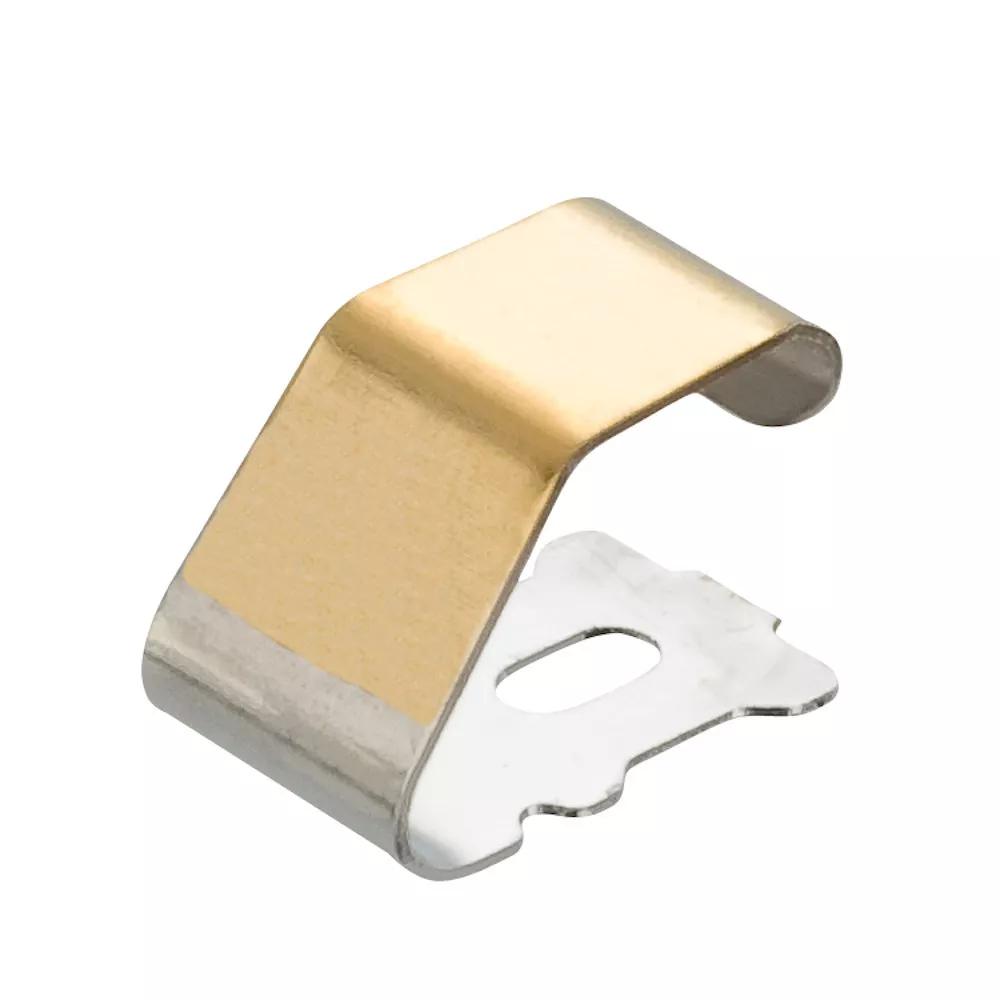

2.70mm SMT Spring Contact (T+R)

SMT Spring Contact

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
  • Free height = 2.7mm. Working height = 2.3mm, Minimum = 1.9mm.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

6A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Titanium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.019g

Overall Dimensions (L x W x D) in mm:

4.00 x 2.50 x 2.70

Height of Connector above PCB:

2.70mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status965
Avnet Abacus
Europe
Status30000
Digi-Key
Global
Status25660
Farnell
Europe
Status788
Mouser Electronics Inc
Global
Status11146
Newark
USA
Status788
TTI Europe
Europe
Status37500
TTI Inc
USA
Status2500

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S7091R.pdf

ZIP

S7091-42R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT028 - Spring Contacts S7041, S7051, S7061, S7071, S7081, S7091, S7101, S7111, S7121 and S1761 Spring Forces

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for S7091-42R product

INSTRUCTION SHEETS

PDF

Product Training Module - EMC Shielding Spring Contacts (spring fingers, grounding contacts)

OTHER DOWNLOADS

PDF

3D PDF file - S7091-42R_3D.pdf

PDF

Catalog page - Spring Contacts (C style)

PDF

Catalog page - Spring Contacts Specifications

PDF

Catalog page - Spring Contacts Introduction

PDF

SMT Spring Contacts - graph of complete range of heights and compression

PDF

Product Summary - SMT Spring Contacts
