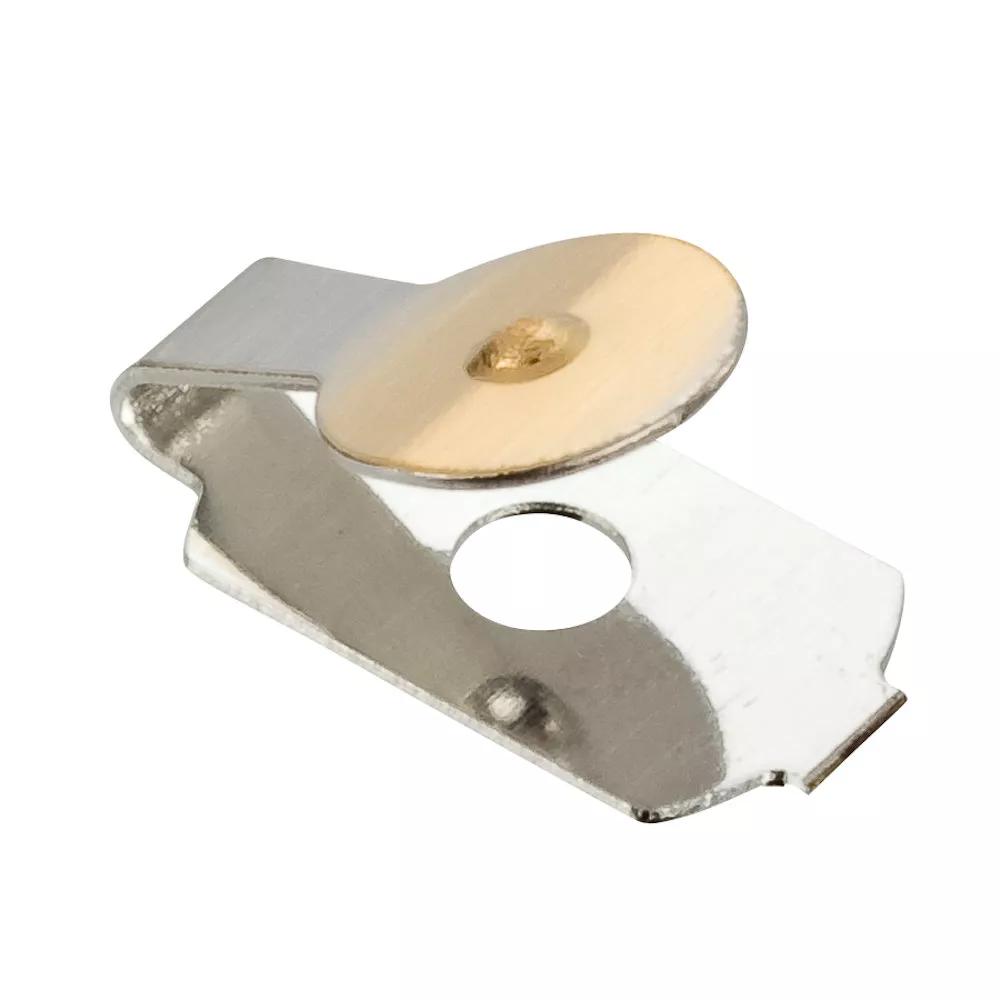

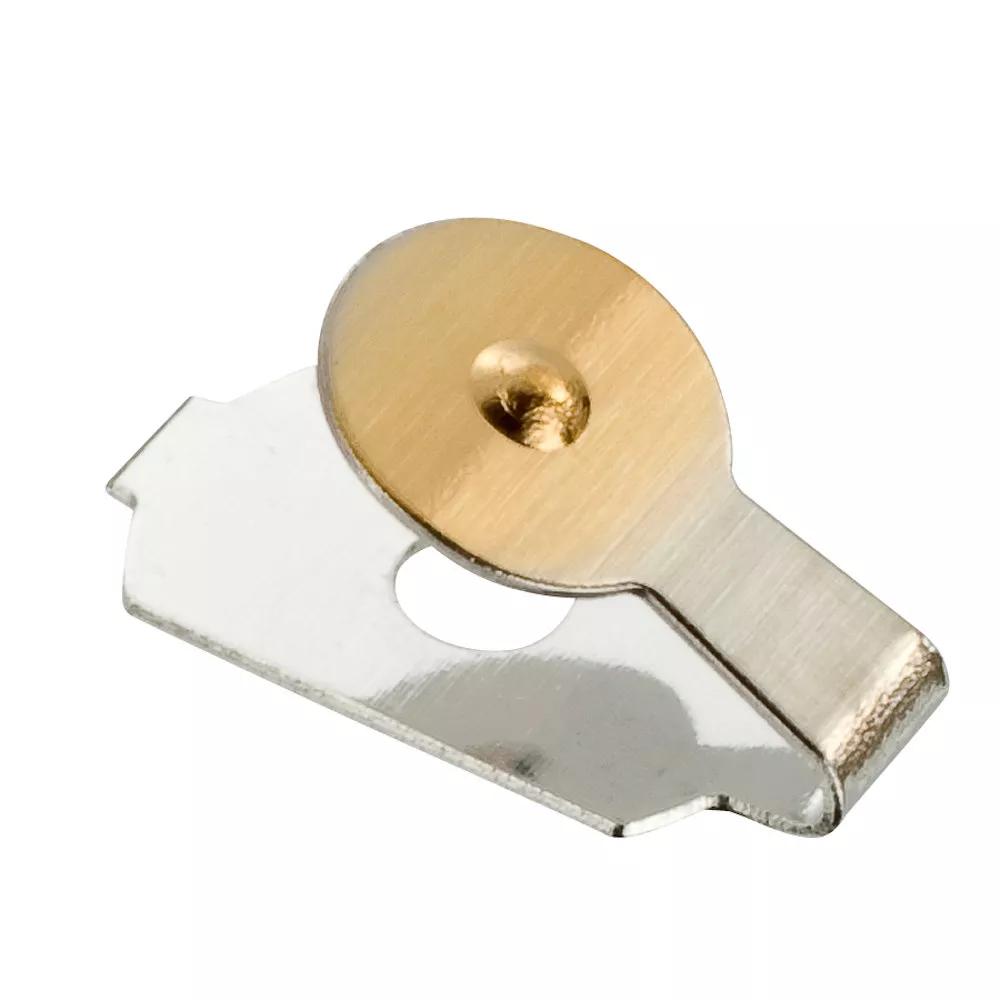

S7081-42R

2.30mm SMT Spring Contact (T+R)

SMT Spring Contact

Add to Favorites

Loading…   Check availability

10 similar products View products

Traceparts account required

Product Description

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Gold finish on contact area, Tin finish on termination.
  • Contact point is 2.3mm above board at rest.
  • Working height at contact point = 2.1mm, Minimum = 1.7mm.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

4A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Titanium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.036g

Overall Dimensions (L x W x D) in mm:

6.25 x 3.18 x 2.75

Height of Connector above PCB:

2.75mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
