Home > S7061-46R
Active

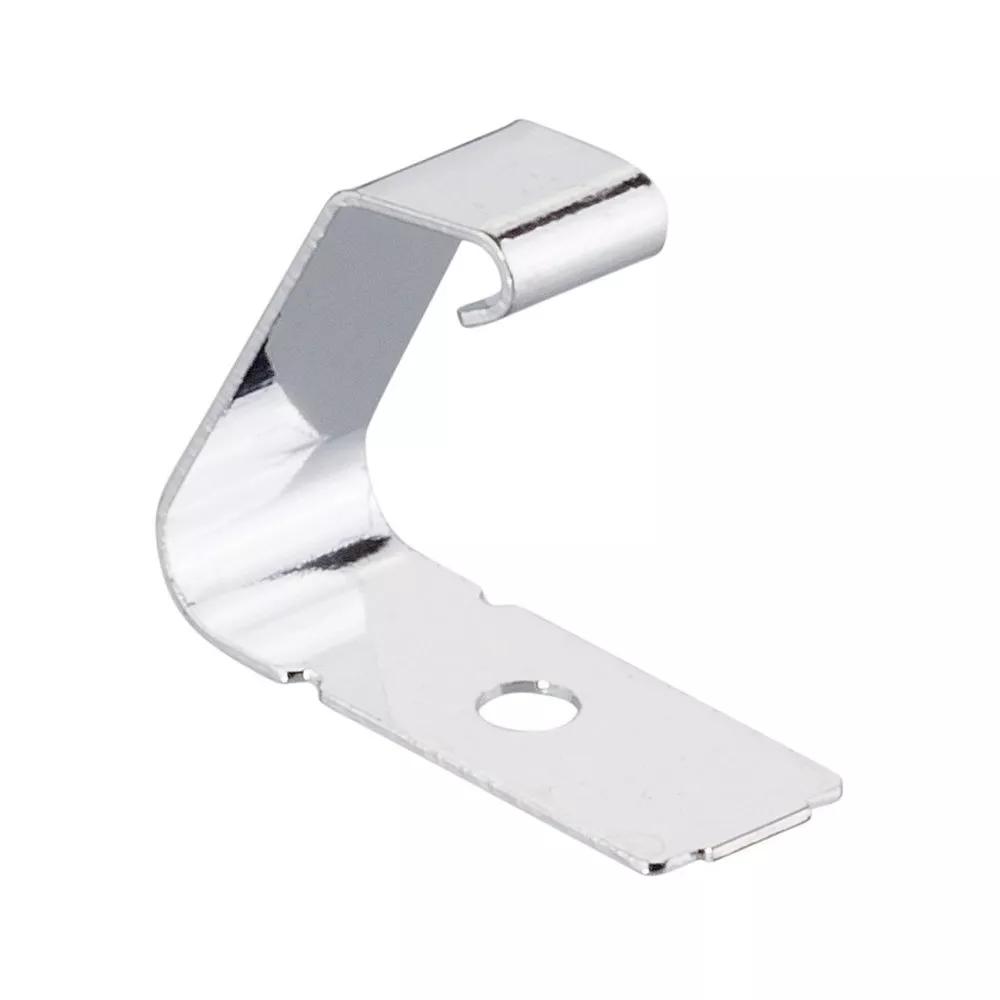

S7061-46R

5.60mm SMT Spring Contact (T+R)

SMT Spring Contact

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
  • Free height = 5.6mm. Working height = 4.6mm, Minimum = 4.1mm.
  • Tin finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

4A max

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.049g

Overall Dimensions (L x W x D) in mm:

6.95 x 2.50 x 5.60

Height of Connector above PCB:

5.60mm

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status139
Avnet Abacus
Europe
Status69600
Digi-Key
Global
Status23017
Farnell
Europe
Status4800
Mouser Electronics Inc
Global
Status4558

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Has component S7061-42R been tested for current rating as a function of temperature?

Sorry, I’m afraid that we have only carried out current ratings at ambient temperature for this product. We are happy to provide samples for you to carry out your own specific testing in relevant environments for your own application – just click on the Request Samples near the top of the page, and then checkout your sample basket.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S7061R.pdf

ZIP

S7061-46R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT028 - Spring Contacts S7041, S7051, S7061, S7071, S7081, S7091, S7101, S7111, S7121 and S1761 Spring Forces

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for S7061-42R product

INSTRUCTION SHEETS

PDF

Product Training Module - EMC Shielding Spring Contacts (spring fingers, grounding contacts)

OTHER DOWNLOADS

PDF

3D PDF file - S7061-46R_3D.pdf

PDF

Catalog page - Spring Contacts (C style)

PDF

Catalog page - Spring Contacts Specifications

PDF

Catalog page - Spring Contacts Introduction

PDF

SMT Spring Contacts - graph of complete range of heights and compression

PDF

Product Summary - SMT Spring Contacts
