S70-138305045R

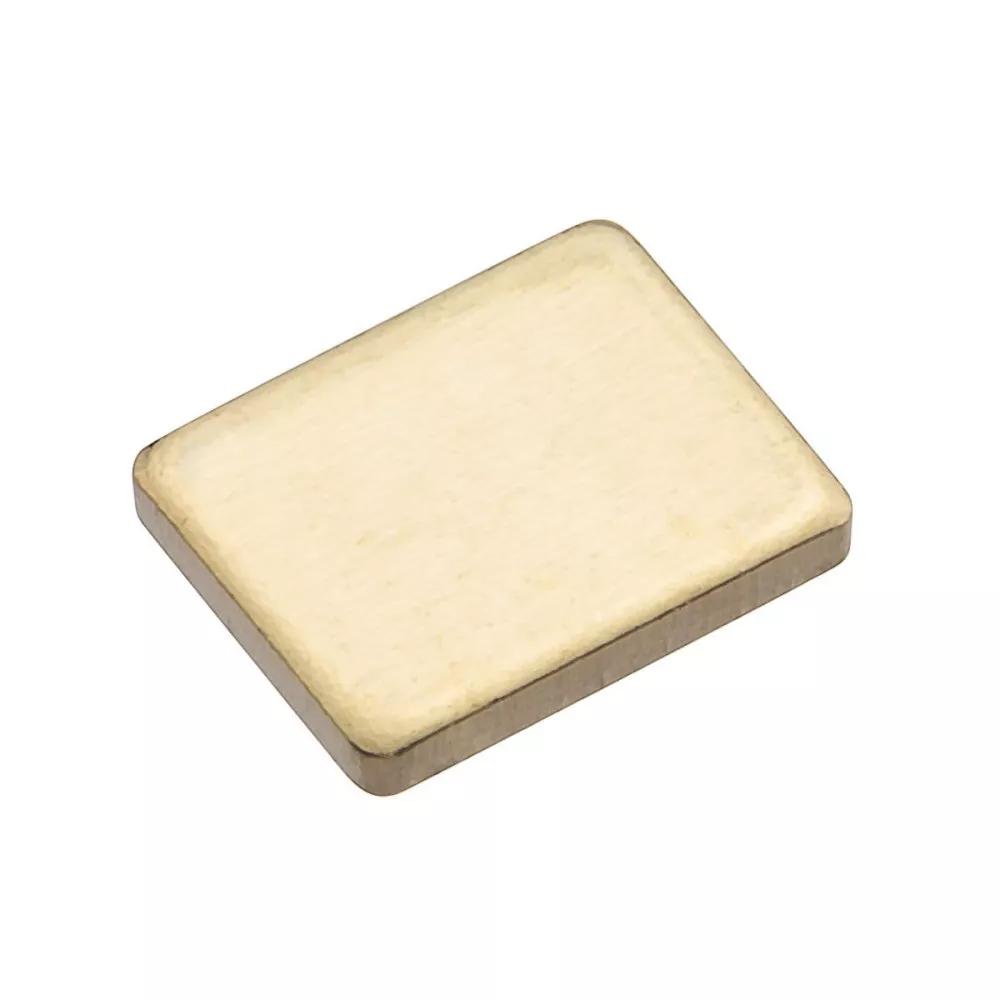

Rectangle SMT Contact Pad, 3.80 x 3.00mm, 0.5mm thick (T+R)
SMT Contact Pad
Loading… Check availability
5 similar products View products
Traceparts account required
Product Description
- Surface Mount flat contact pad, rectangular shape. Gold finish.
- 3.8mm x 3mm rectangle, 0.5mm thick.
- Use as a hard-wearing mating surface for SMT Spring Contacts, Spring Loaded Contacts and Spring Loaded Contact Assemblies.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Current Rating:
6A
Operating Temperature:
-40°C to +180°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
Can be cut to another size:
No
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.051g
Overall Dimensions (L x W x D) in mm:
3.80 x 3.00 x 0.50
Height of Connector above PCB:
0.50mm
Frequently Asked Questions Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
Was this answer useful?
What is the voltage rating for the contact pad at 6A?
Voltage rating is based on the maximum voltage, with a safety margin (can be calculated at 33% to 66% of the maximum voltage). However, to find the maximum voltage, it has to be tested for the voltage level at which flashover occurs – and this depends on the gap to the next nearest contact or other metal object (like the enclosure). As this contact pad is a single contact, and not a row of contacts, we have no control over the distance to the next nearest metal object – this will depend on your design. You will therefore need to evaluate and test for this within your specific layout, sorry.
Was this answer useful?
I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?
These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.
Was this answer useful?
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
Was this answer useful?
