S2761-46R

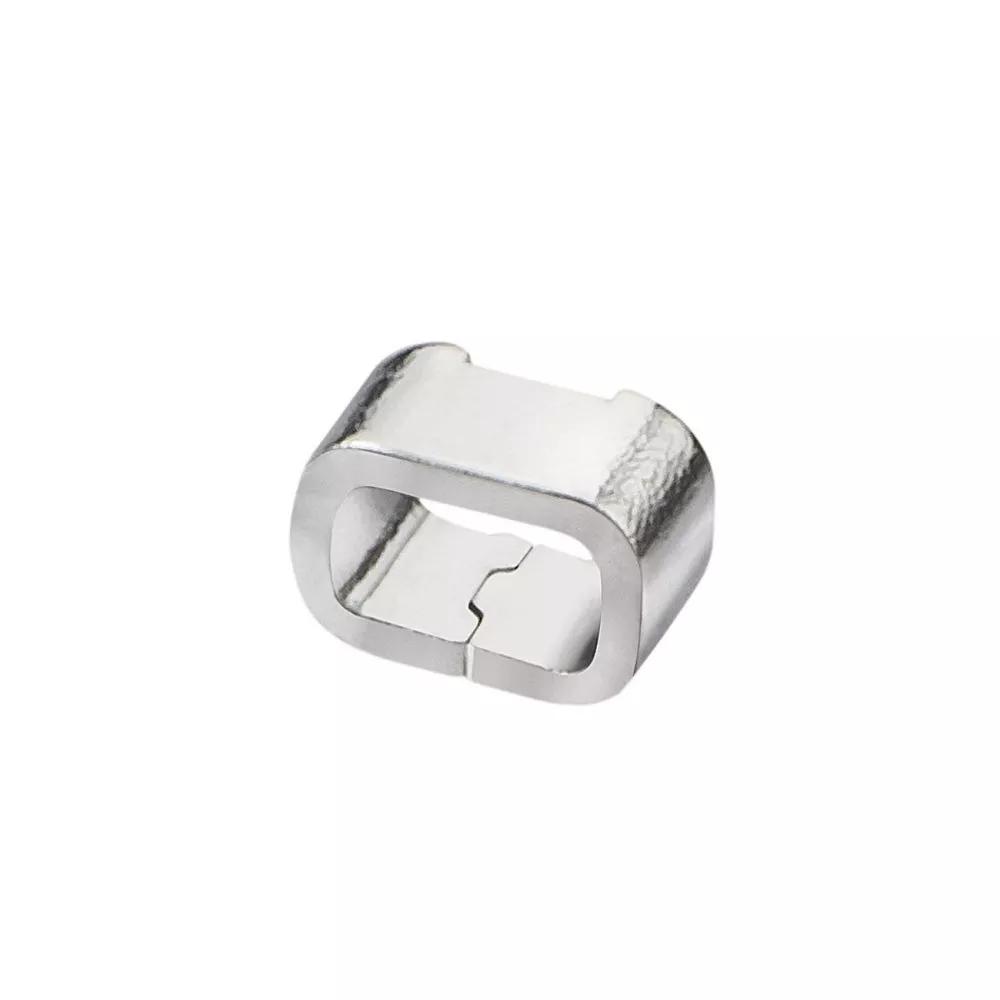

SMT Test Point

Hardware - Test Point

  • Ideal for use with standard Test Probes, Micro Test Lead clips and hooks.
  • Conforms to 1608 Metric (0603 Imperial) package/footprint size, 1.15mm high. Tin finish.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

3.5A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.006g

Overall Dimensions (L x W x D) in mm:

1.60 x 0.80 x 1.15

Height of Connector above PCB:

1.15mm

Availability

23,905 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 23905

Questions & Answers Ask a Question

Are these compliant to Aerospace Standard AS9100?

Please be advised that the Aerospace Standard AS9100 is a quality management standard and applies to a company, rather than a product. Harwin is certified to the EN9100:2018 standard, which is the European version of AS9100D and is technically equivalent. You can download our EN9100 certificate from our Quality page.

Do these SMT test points come with an LDC (Lot Date Code) or a Lot number for traceability?

Yes, all our products are supplied with a batch number – see our Support article on batch traceability. If you need to determine the date of manufacture from a specific batch number, please contact one of our Customer Services Experts.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
