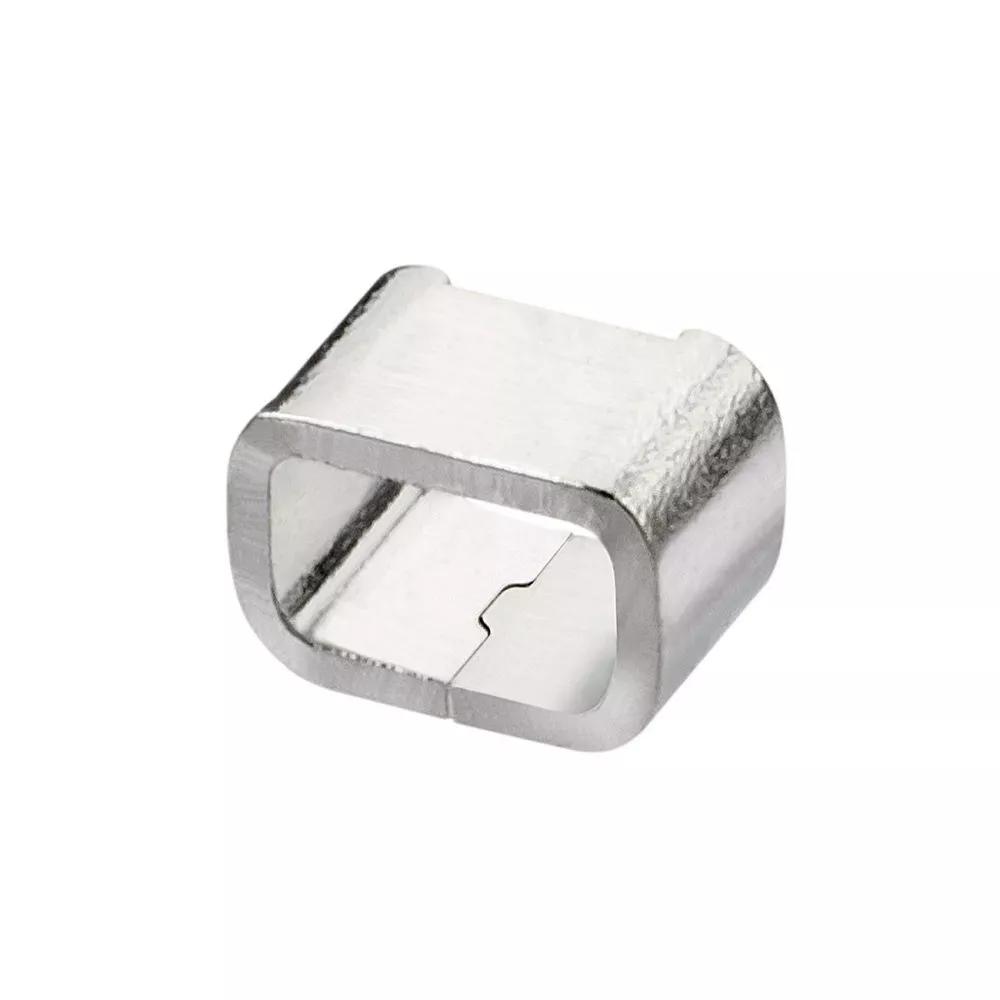

S2751-46R

SMT Test Point (T+R)

Hardware - Test Point

  • Ideal for use with standard Test Probes, Micro Test Lead clips and hooks.
  • Conforms to 2012 Metric (0805 Imperial) package/footprint size, 1.4mm high. Tin finish.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

3.5A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.011g

Overall Dimensions (L x W x D) in mm:

2.00 x 1.20 x 1.40

Height of Connector above PCB:

1.40mm

Availability

148,582 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 116470
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 15000
Distributor Newark
Location USA
Quantity (Updated Daily) 6225
Distributor Newark
Location USA
Quantity (Updated Daily) 5000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3619
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2262
Distributor Anglia
Location Europe
Quantity (Updated Daily) 6

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
