S25-501

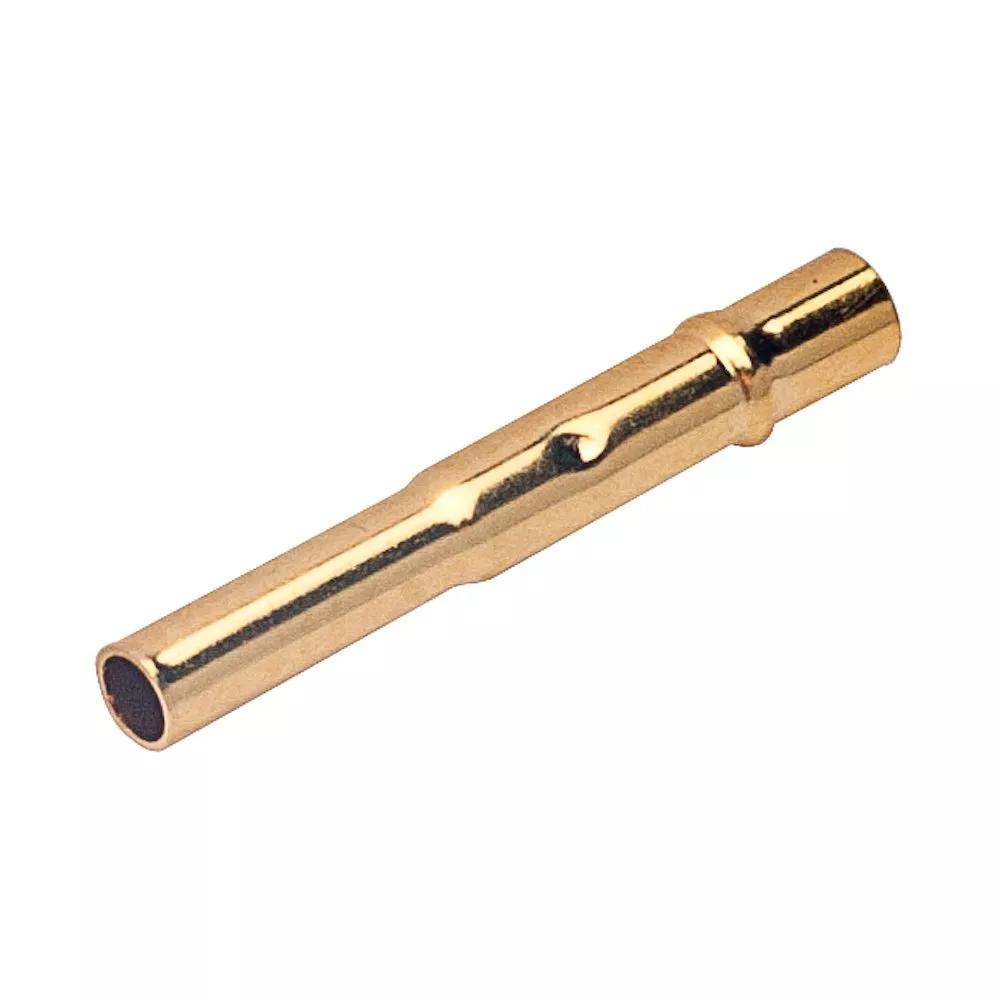

ATE Spring Probe Sleeve for Two-Part Probe, 2.54mm Centres

ATE Spring Probe Receptacle, Test Probe Sleeve

  • Sleeve / Receptacle for Two Part Spring Probe, crimp or solder.
  • Use with probe P25-4021.
  • Gold finish.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

Dependent on assembled probe

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.057g

Overall Dimensions (L x W x D) in mm:

12.20 x Ø1.81

Availability

1,209 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 645
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 564

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
