Image may be representative. Refer to the product title for more information.

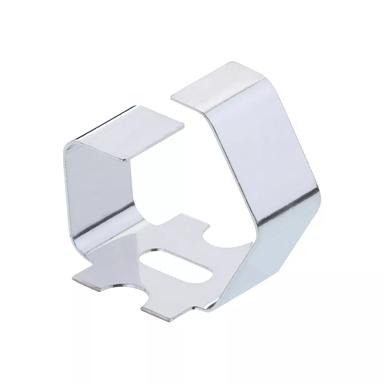

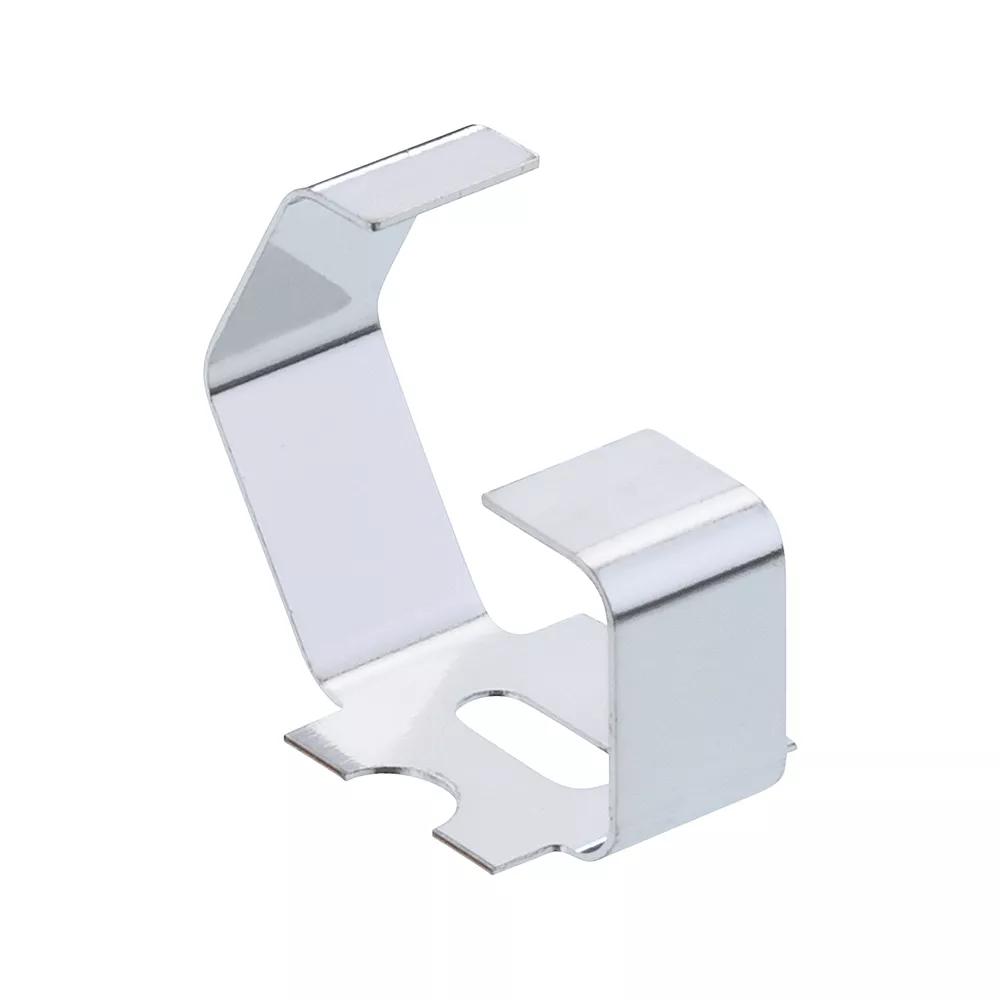

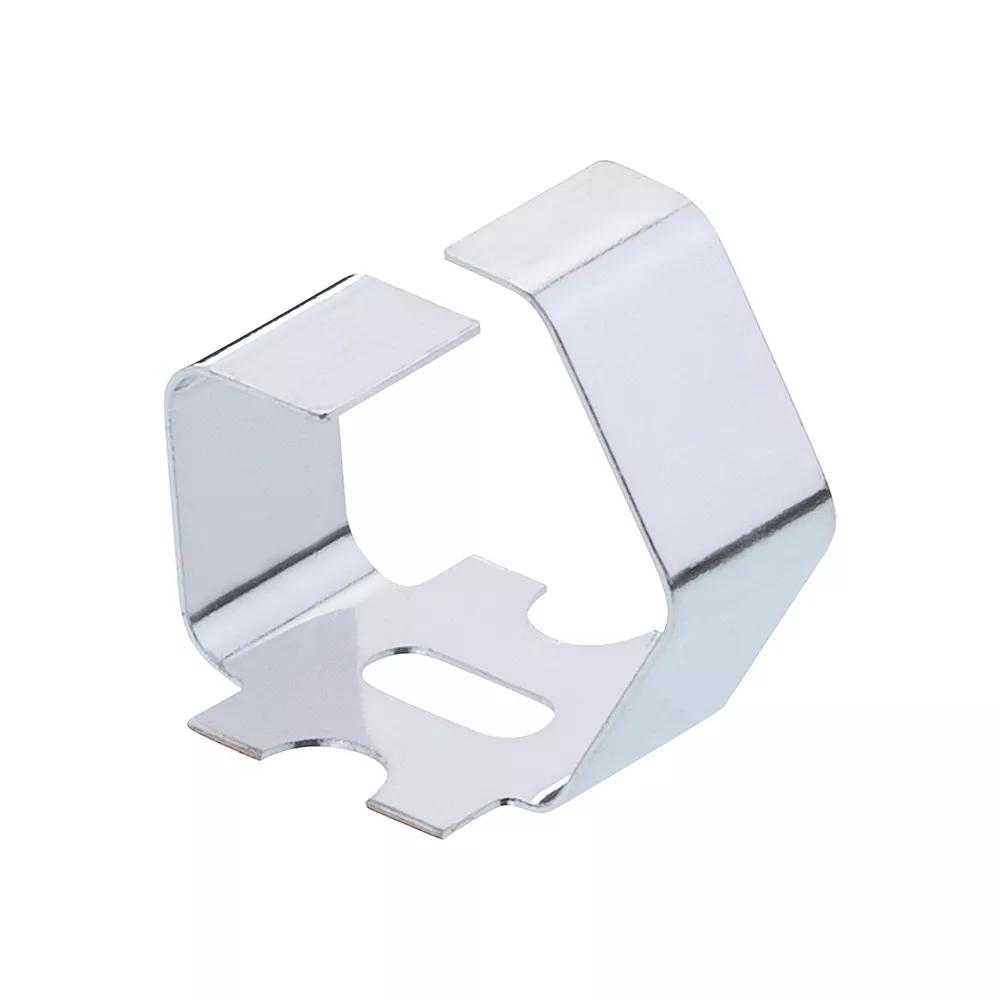

Surface mount spring contact for top-down compression. Contact shape is multi-directional - accommodates either top-down or sideways compression.
Free height = 8.5mm. Top-down working deflection = 0.4mm min, 1mm max. Side working deflection = 0.3mm min, 0.9mm max.
Tin finish on contact area and termination. Packaged in Tape and Reel for automated placement (pick and place directly on the contact rear tag).
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Straight, Right-Angle
Country of Origin
GB
Number of Signal Contacts
1
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
14A max
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Base Material of Contact
Cupro-Nickel
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Weight
0.113g
Dimensions
9.63 x 5.70 x 8.50
Height of Connector above PCB
8.50mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - S1981R.pdf
C055XX Component Specification - Multi-Directional Spring Contacts
Product Information
Product Training Module - EMC Shielding Spring Contacts (spring fingers + grounding contacts)
SMT Spring Contacts - graph of complete range of heights and compression
Product Datasheet - SPRING CONTACTS: SMT Spring Contacts (EZi)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S1981-46R product
Harwin REACH Statement - S1981-46R
RoHS Declaration - S1981-46R
