S1971-46R

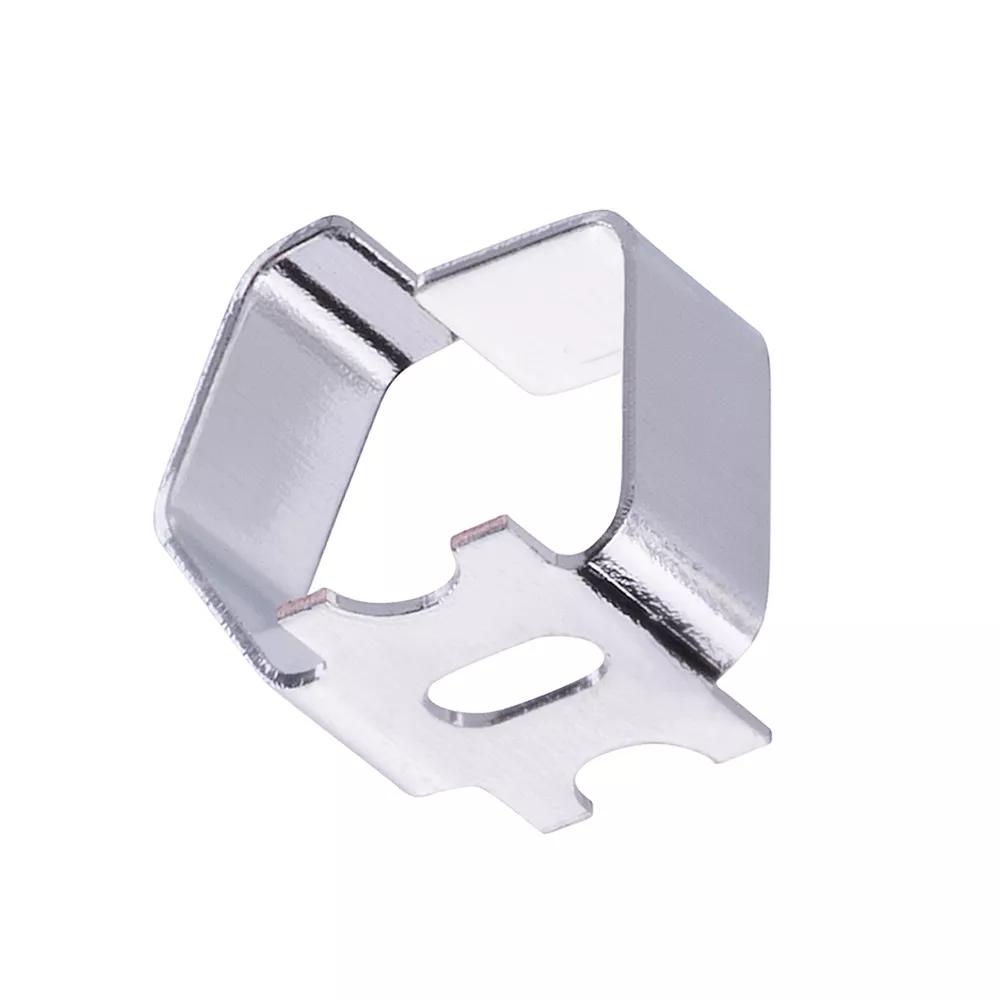

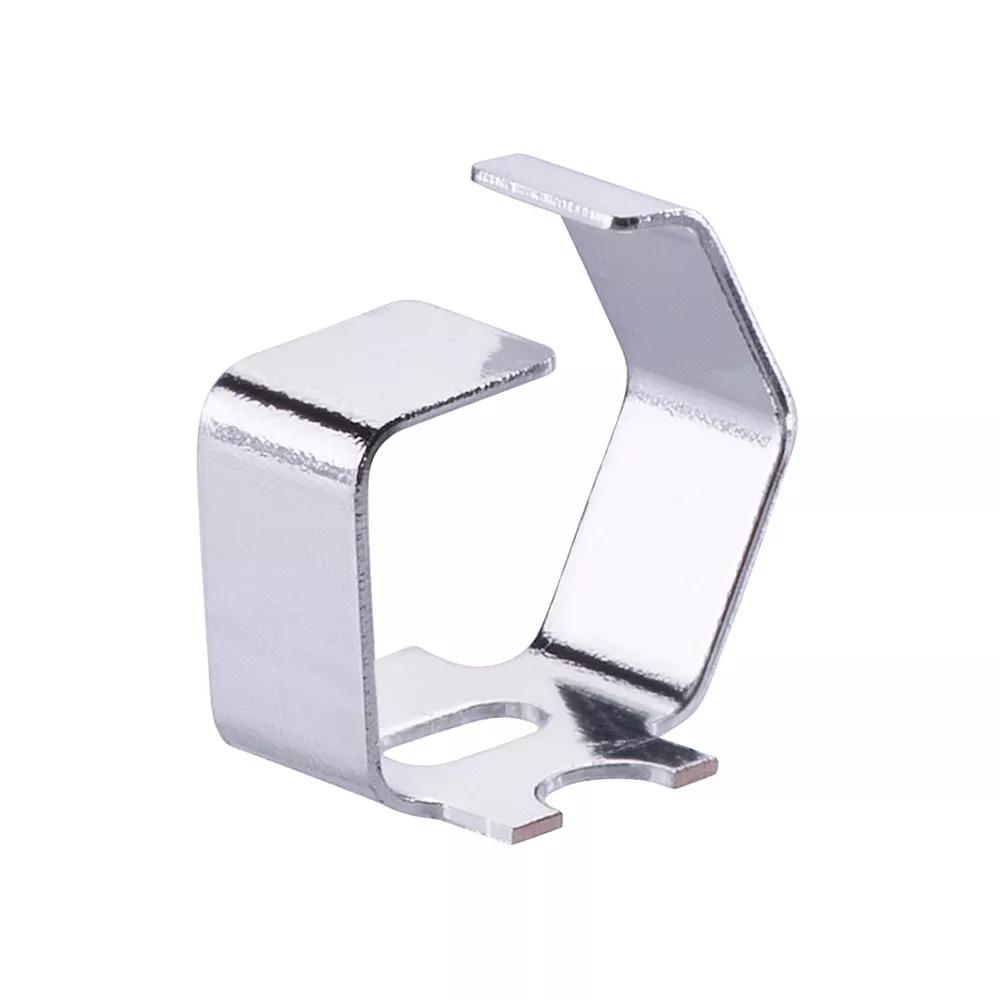

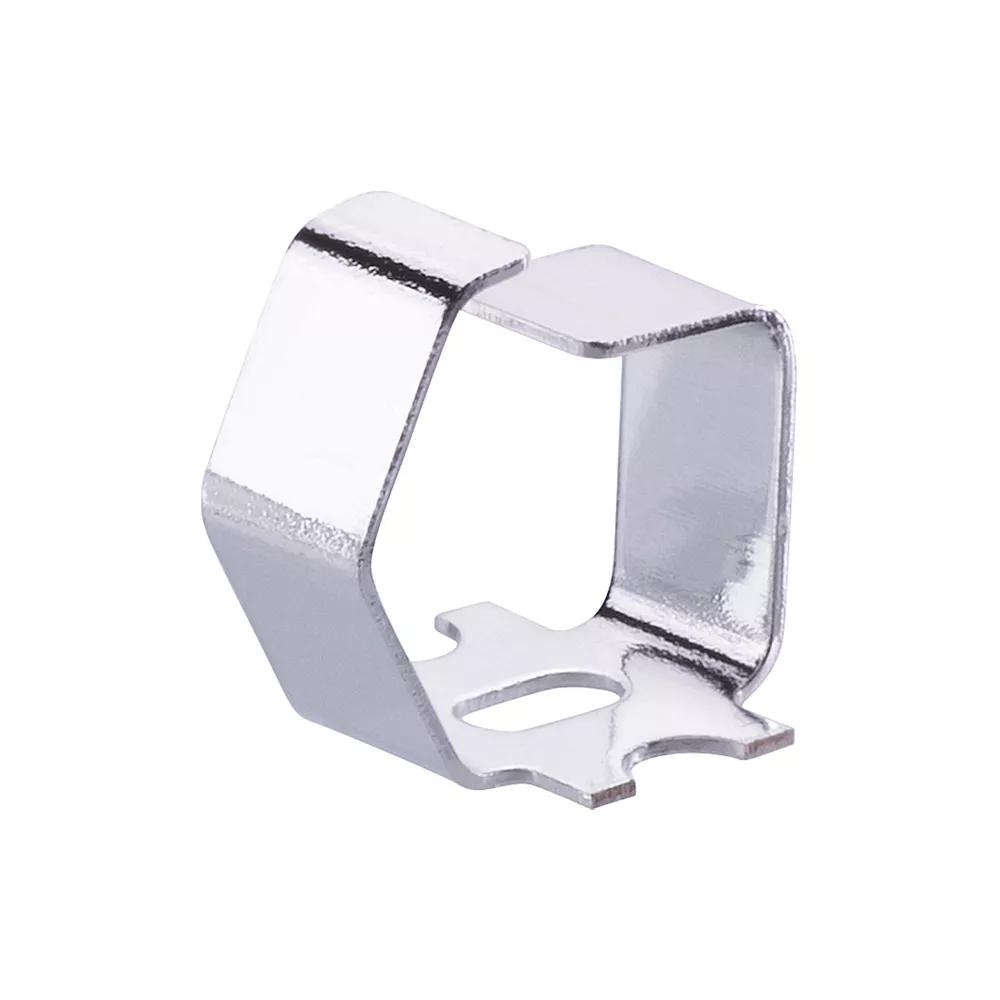

4.55mm SMT Multi-directional Spring Contact (T+R)

SMT Spring Contact

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
  • Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 4.55mm.
  • Vertical Working height = 4.25mm, Minimum = 3.95mm. Horizontal Working length = 4.33mm, Minimum 4.13mm.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical and Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

14A

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Cupro-Nickel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.039g

Overall Dimensions (L x W x D) in mm:

4.63 x 3.70 x 4.55

Height of Connector above PCB:

4.55mm

Availability

2,000 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order

Stock held by Harwin: contact distributor to purchase.

Distributor Location Quantity (Updated Daily)
Distributor Harwin
Location Global
Quantity (Updated Daily) 2000
