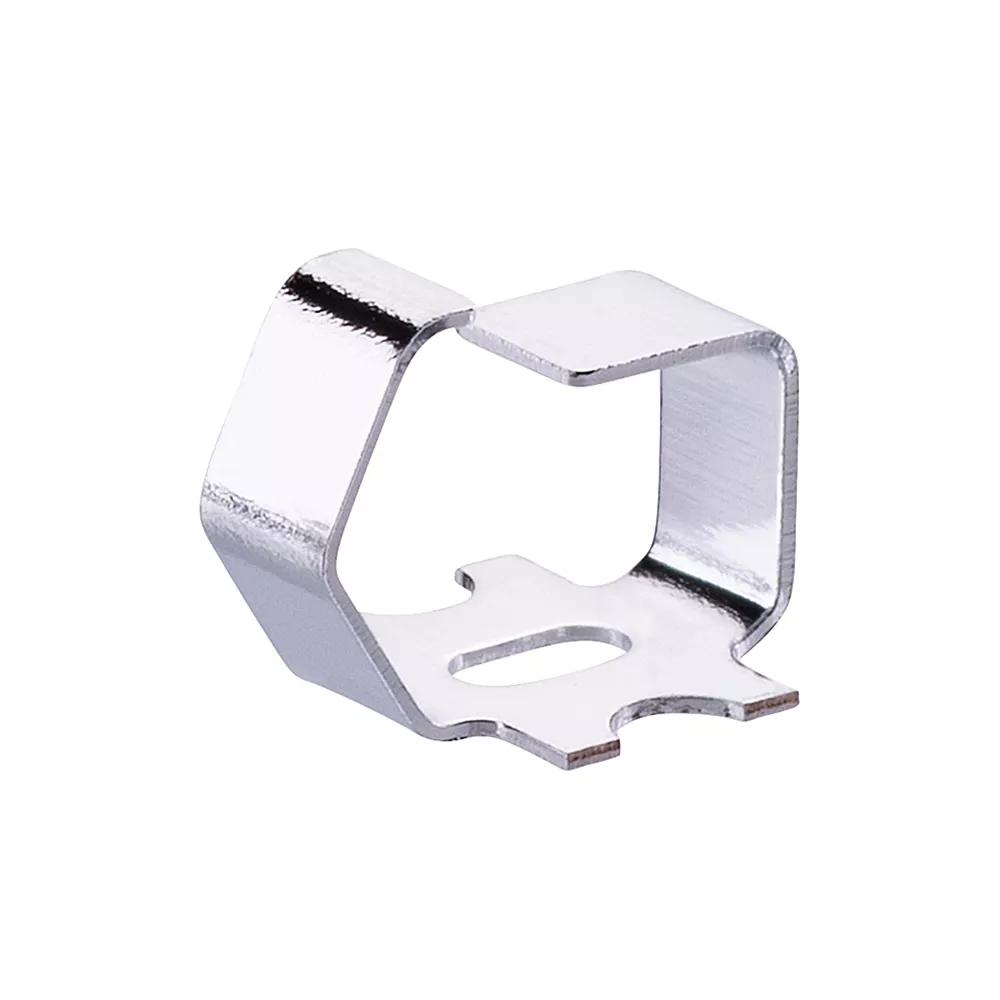

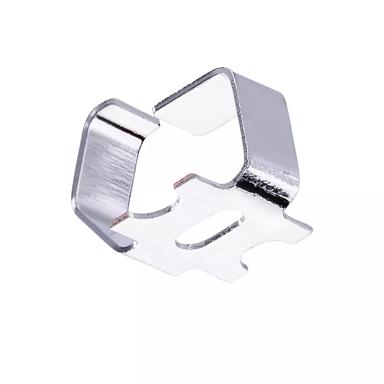

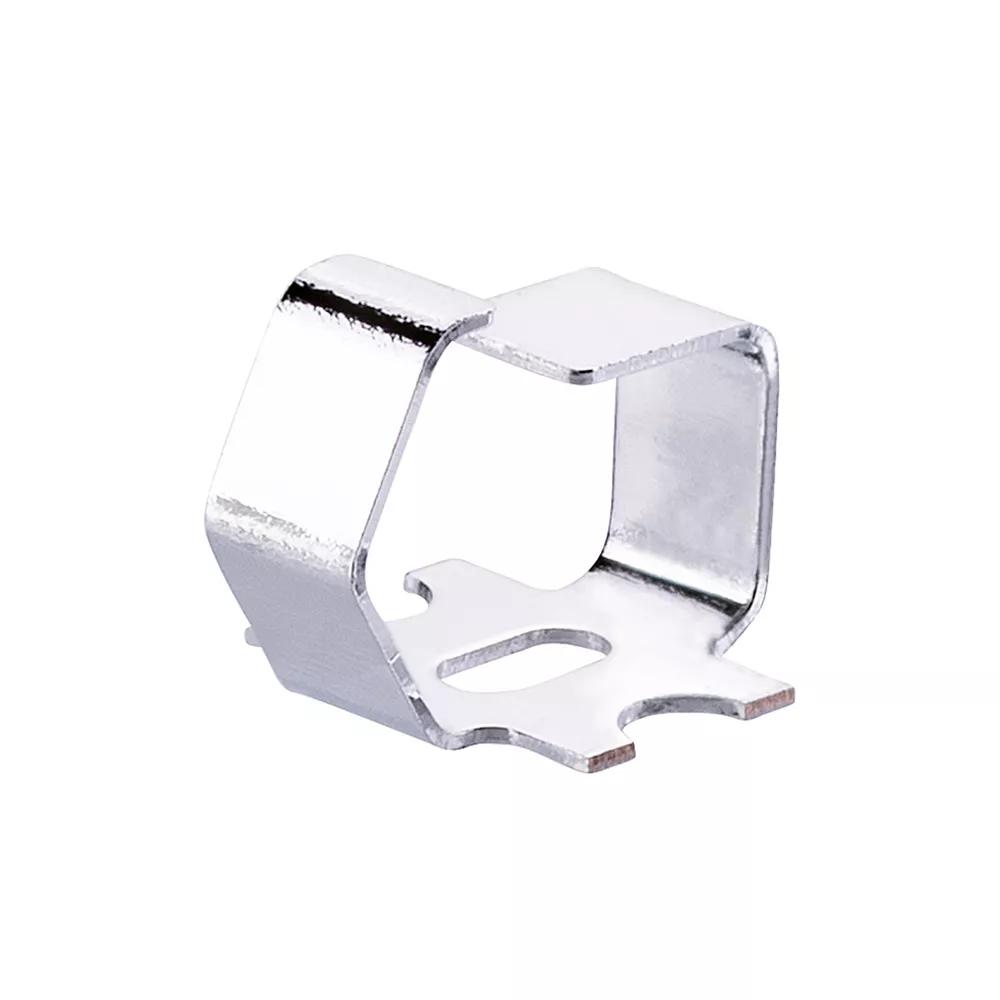

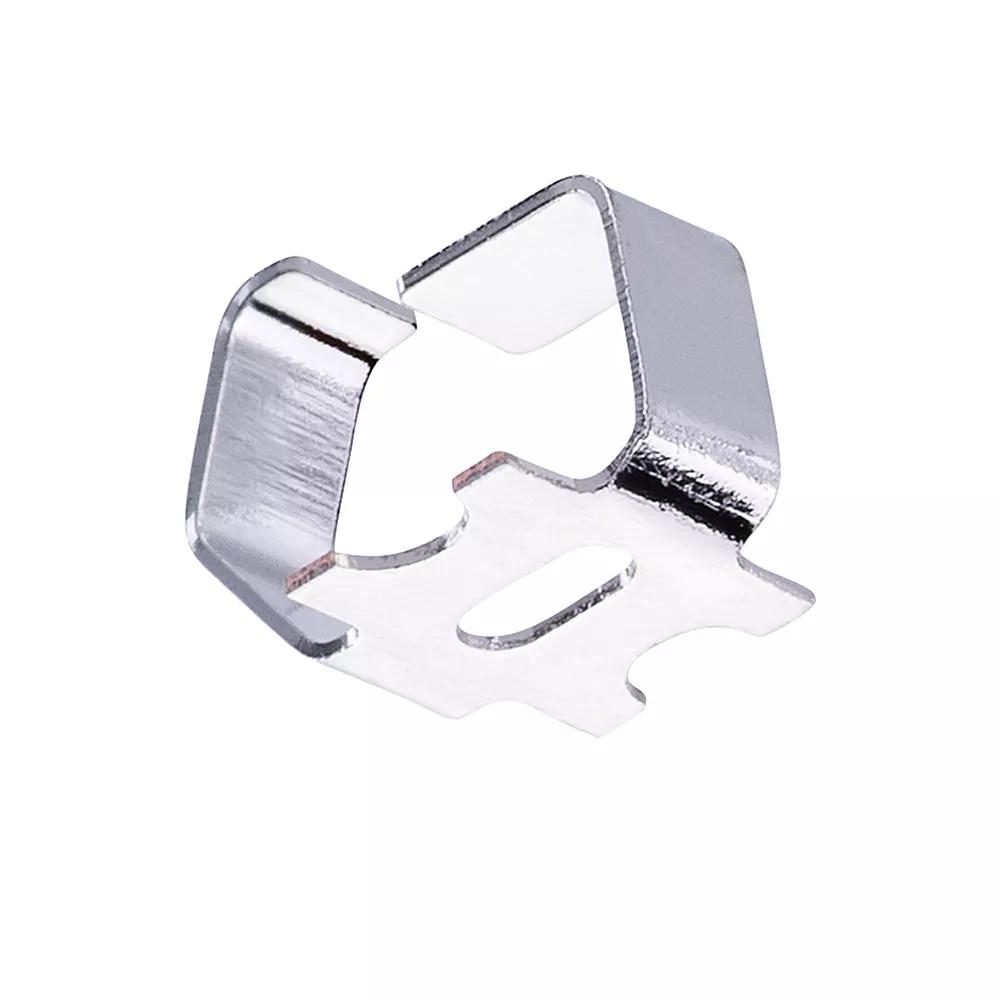

S1961-46R
3.55mm SMT Multi-directional Spring Contact (T+R)
SMT Spring Contact
49,982 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description
- Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
- Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 3.55mm.
- Vertical Working deflection = 0.20mm, Maximum deflection = 0.60mm. Horizontal Working deflection = 0.20mm, Maximum deflection = 0.50mm.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Connector Orientation:
Vertical and Horizontal
Connection Type:
Surface Mount (SMT)
Current Rating:
14A
Operating Temperature:
-40°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
1
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
100% Tin over Nickel
Base Material of Contact:
Cupro-Nickel
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.031g
Overall Dimensions (L x W x D) in mm:
4.63 x 3.70 x 3.55
Height of Connector above PCB:
3.55mm
Frequently Asked Questions Ask a Question
How many mating cycles can this contact handle?
This contact is rated for 5,000 mating cycles minimum. You can find the Durability rating on the Technical Drawaing, available from the Downloads / Technical Documentation area of the product page.
Was this answer useful?
Is there a recommended insertion tool that I can use with the ATE probes and sleeves?
We do not have a specific insertion tool for our ATE test probe sleeves. If you are press-fit assembling the sleeve to a panel, you would just need to support the underside of the panel around the mounting hole, and push down on the sleeve with a flat plate. A typical bench press should be suitable. The probe should then be fitted to the sleeve by hand. There is also an instruction sheet available for these products.
Was this answer useful?
