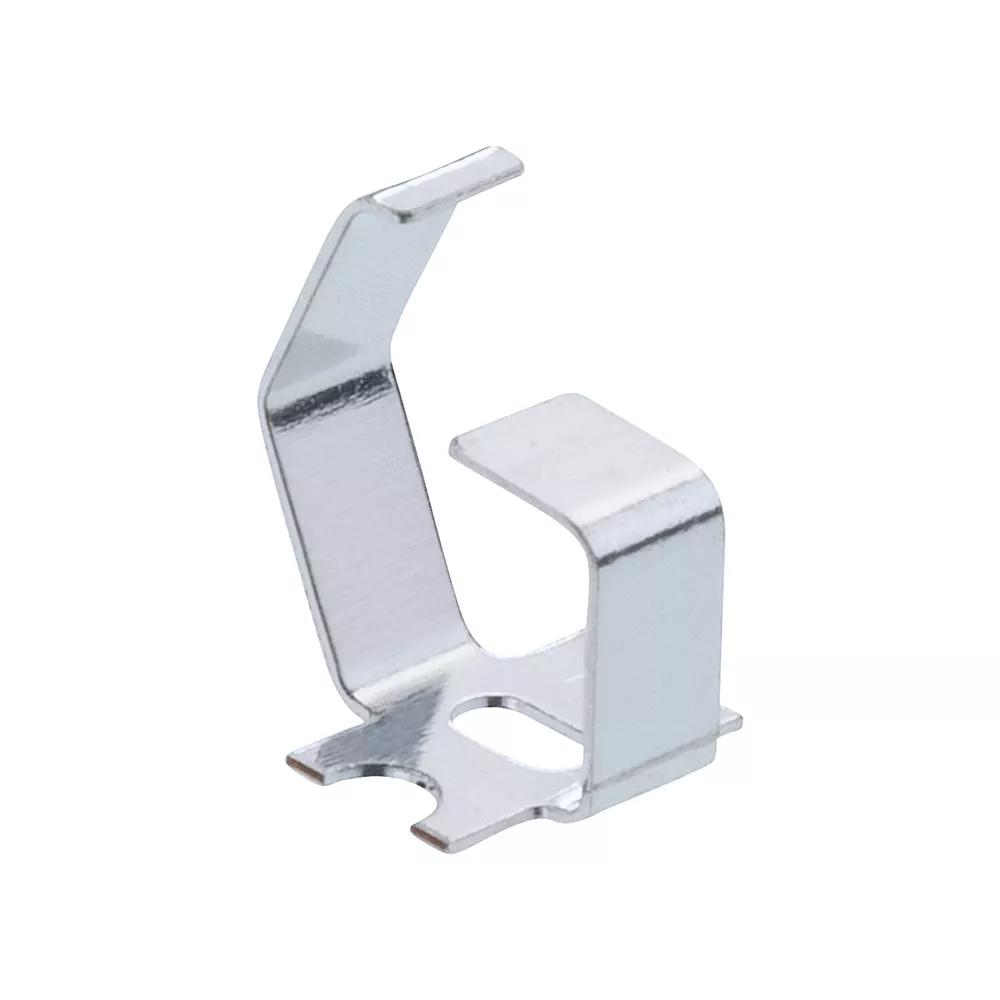

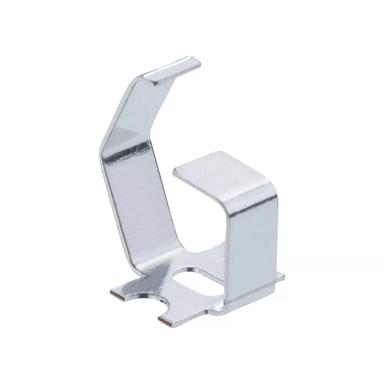

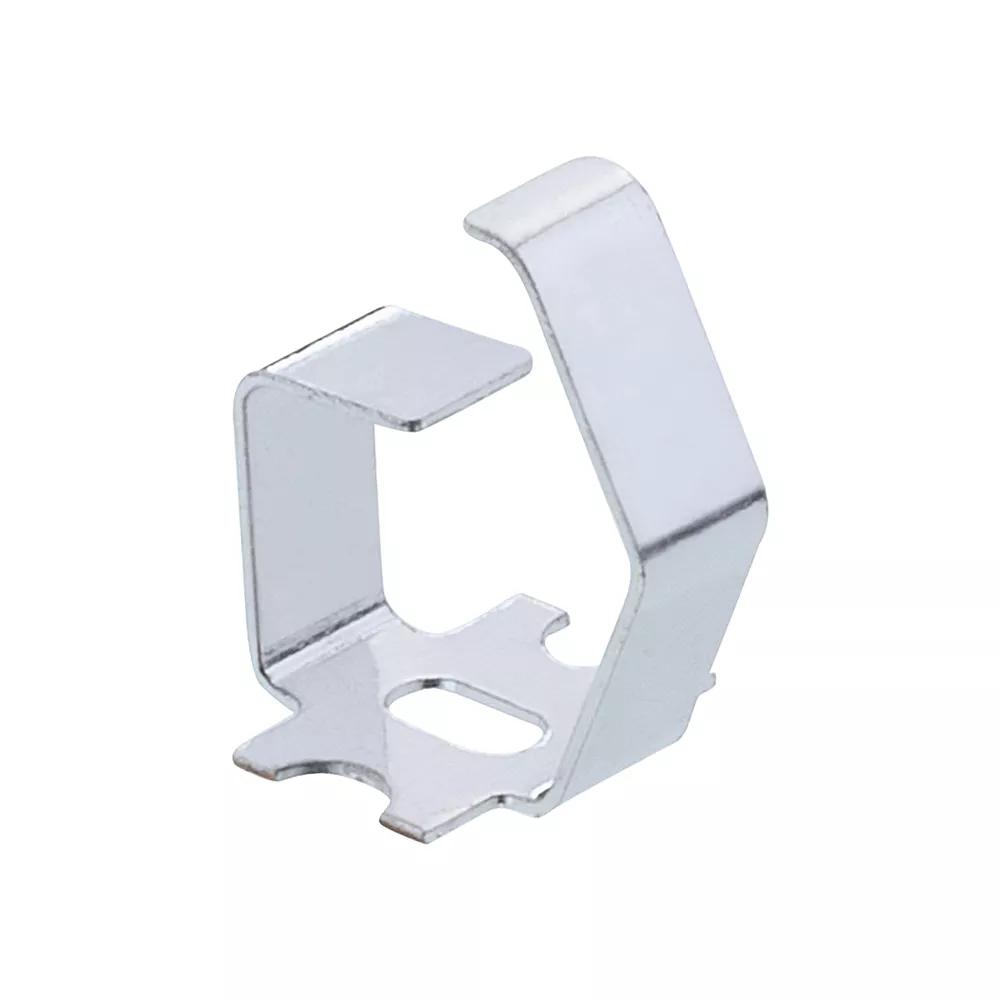

Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 5.50mm.
Vertical working deflection = 0.20mm min, 0.70mm max. Horizontal working deflection = 0.25mm min, 0.60mm max.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Vertical and Horizontal
Country of Origin
GB
Number of Signal Contacts
1
Operating Temperature
-55°C to +125°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
12A max
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Base Material of Contact
Cupro-Nickel
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Weight
0.032g
Dimensions
4.70 x 3.70 x 5.50
Height of Connector above PCB
5.50mm
