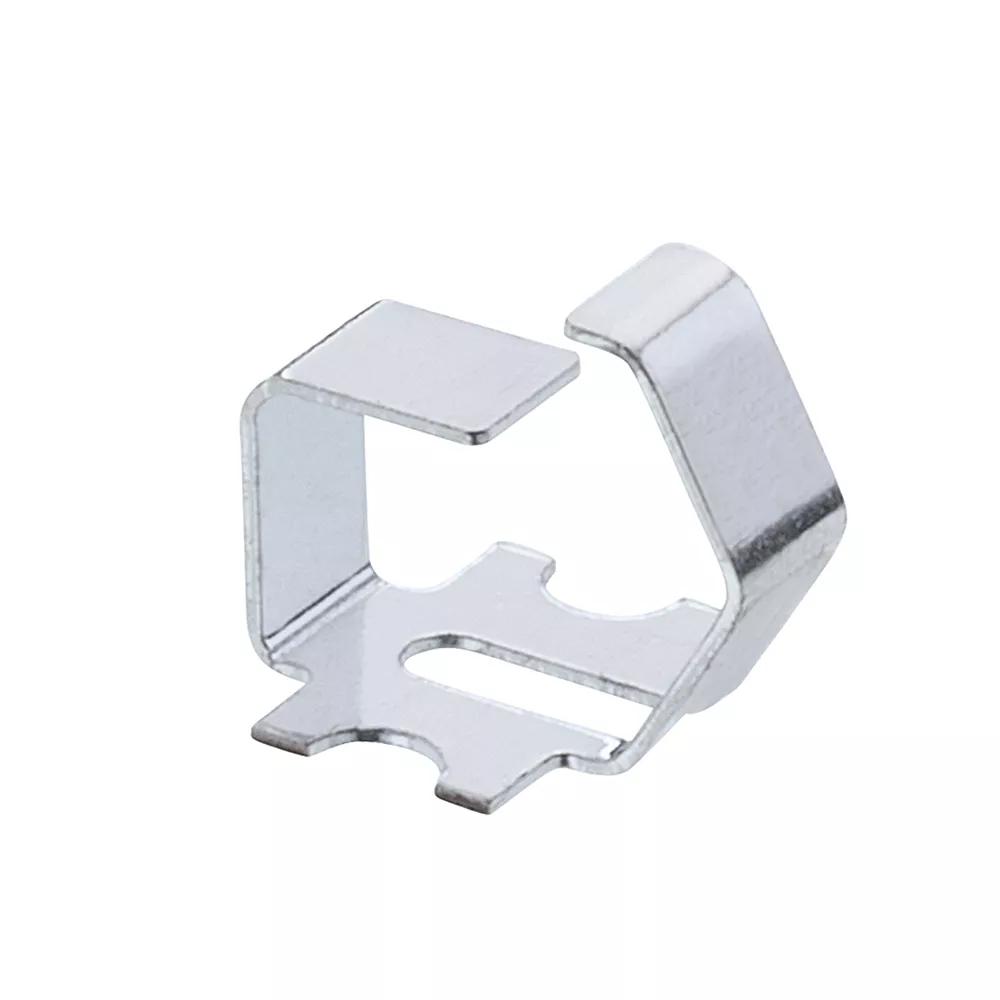

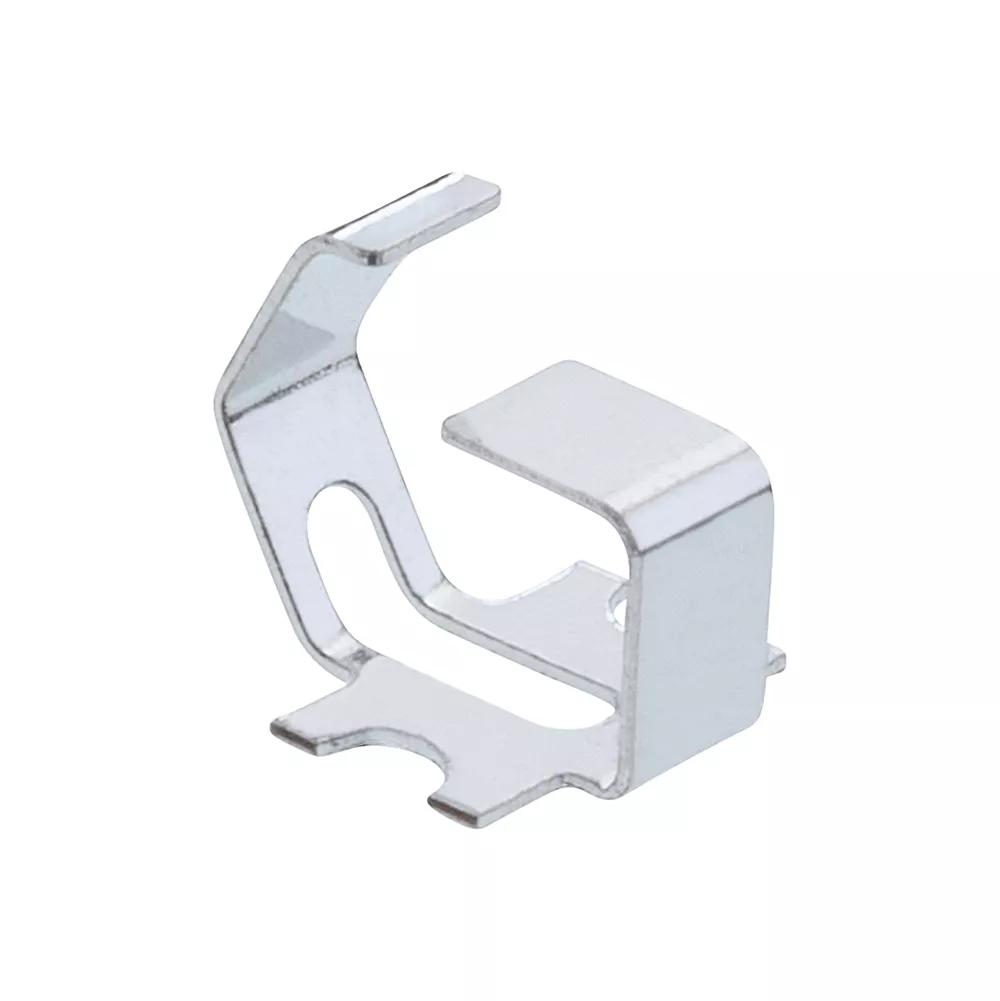

4.00mm SMT Multi-directional Spring Contact (T+R)

SMT Spring Contact

Add to Favorites

Loading…   Check availability

9 similar products View products

Traceparts account required

Product Description

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
  • Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 4.00mm.
  • Vertical working deflection = 0.15mm min, 0.40mm max. Horizontal working deflection = 0.15mm min, 0.40mm max.

Technical Details

Specification

Connector Orientation:

Vertical and Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

12A max

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Cupro-Nickel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.028g

Overall Dimensions (L x W x D) in mm:

4.65 x 3.70 x 4.00

Height of Connector above PCB:

4.00mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
