S1811-46R

S1811-46R

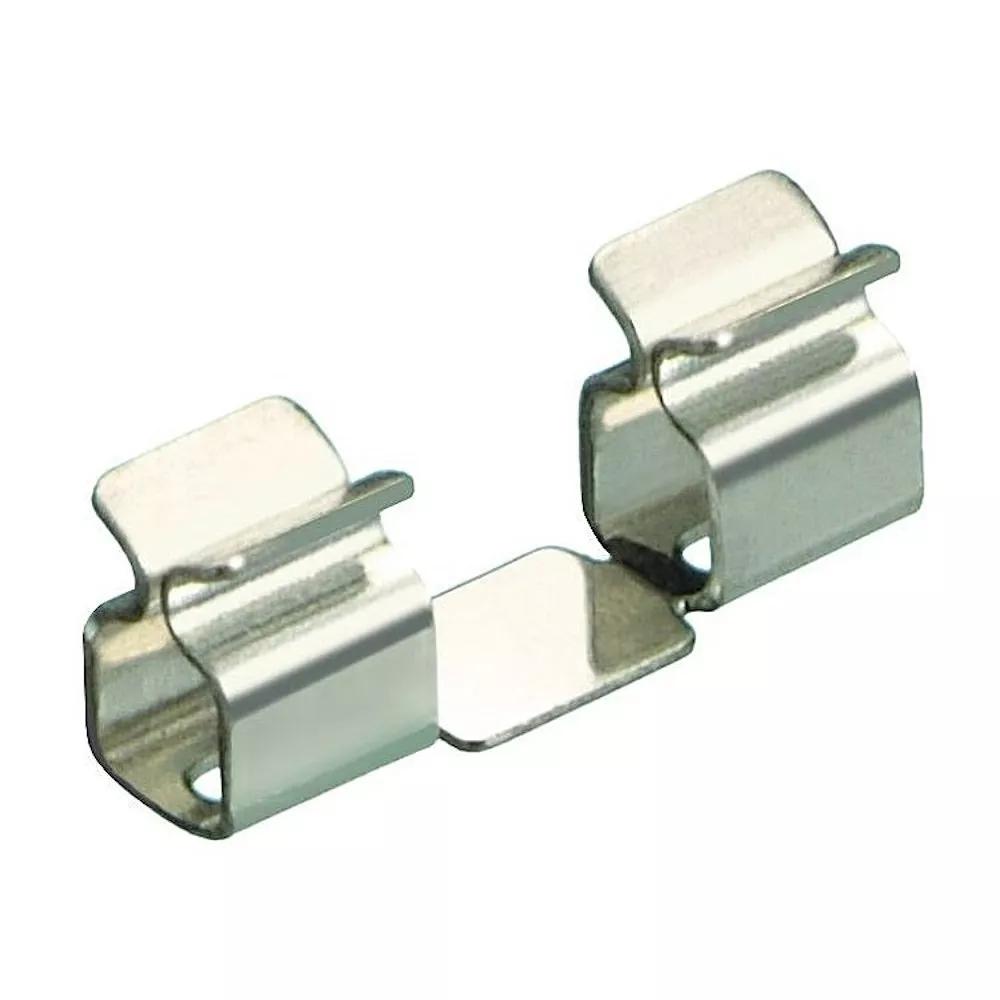

SMT RFI Shield Clip, Midi (T+R)

EZi

S1811-46R

SMT RFI Shield Clip, Midi (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • Midi size (8.8mm long, 3.4mm high), for 0.4-0.6mm shield thickness. Tin finish on contact area and termination.

  • Packaged in Tape & Reel for automated placement.

  • Can be used to hold two 0.20mm or 0.30mm thick shield cans, so they can be PCB mounted next to each other.

View Technical Details

In Stock

Further Details

Jump To:

Technical Details

Product Characteristics

Materials

Dimensions

Downloads

Technical Documentation

Product Information

Test Reports

Environmental Compliance

Technical Details

Product Characteristics

  • Entry Style:

    Top Entry

  • Connector Orientation:

    Vertical

  • Country of Origin:

    GB

  • Operating Temperature:

    -40°C to +125°C

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

Materials

  • Finish / Plating on Contact Surface:

    100% Tin over Nickel

  • Base Material of Contact:

    Beryllium Copper

  • Packaging Style:

    Tape and Reel

  • Finish / Plating on Termination:

    100% Tin over Nickel

Dimensions

  • Weight:

    0.106g

  • Dimensions:

    8.80 x 2.48 x 3.37

  • Height of Connector above PCB:

    3.37mm

Downloads

Technical Documentation

  • Technical Drawing / Datasheet - S1811-46R.pdf

Product Information

  • Product Training Module - EMC/RFI Shield Clips and Shield Cans

  • SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force

  • Product Datasheet - SHIELDING: EMC Shielding range (EZi)

Test Reports

  • Test Report HT089 - 0.5mm Shield Clip S1811 - General Testing

Environmental Compliance

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Environmental Legislation Statement

  • Material_composition_for_S1811.pdf

  • RoHS - S1811-46R
