Home > S1791-42R
Active Product

S1791-42R

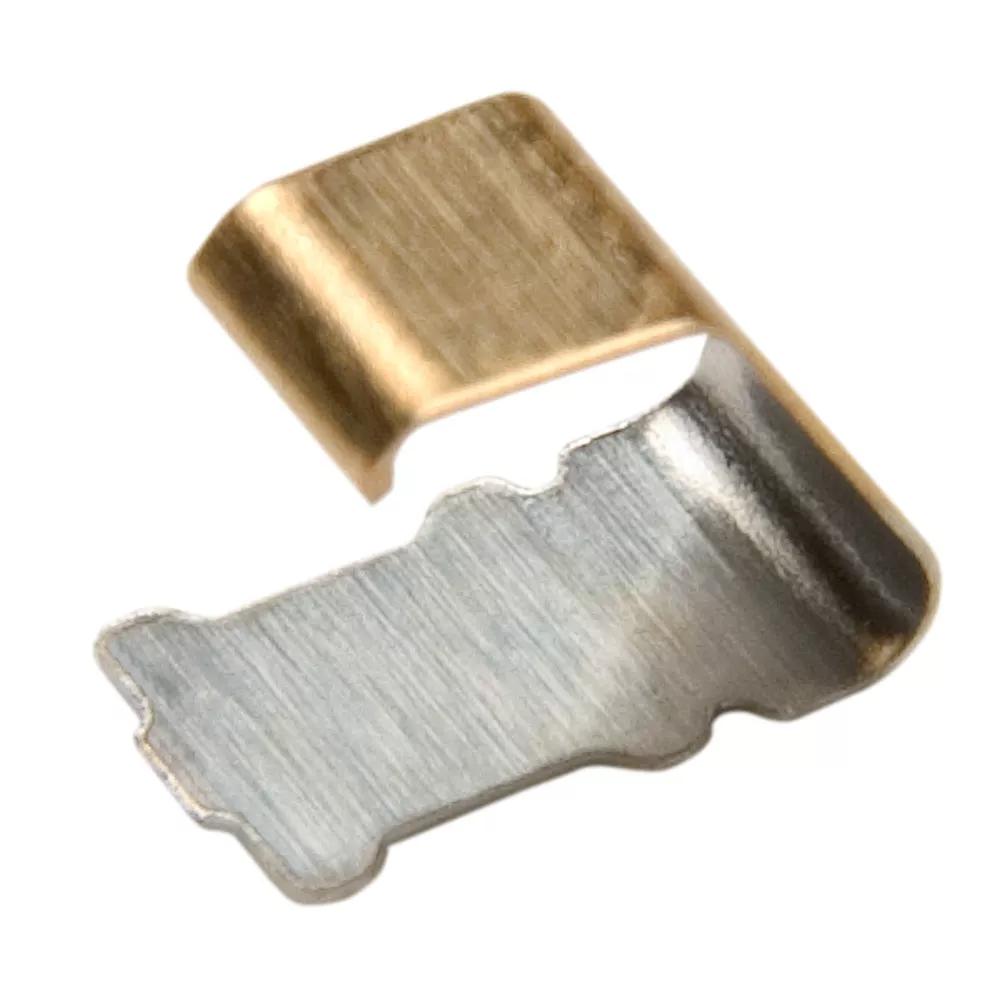

4.00mm SMT Spring Contact (T+R)

SMT Spring Contact

Add to Favorites

866,706 in stock   Check availability

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement.
  • Free height = 4mm. Working height = 3mm, Minimum = 2mm.
  • Gold finish on contact area and termination.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

3A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Titanium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.051g

Overall Dimensions (L x W x D) in mm:

7.00 x 2.50 x 4.00

Height of Connector above PCB:

4.00mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
