Home > S1751-46R
Active Product

S1751-46R

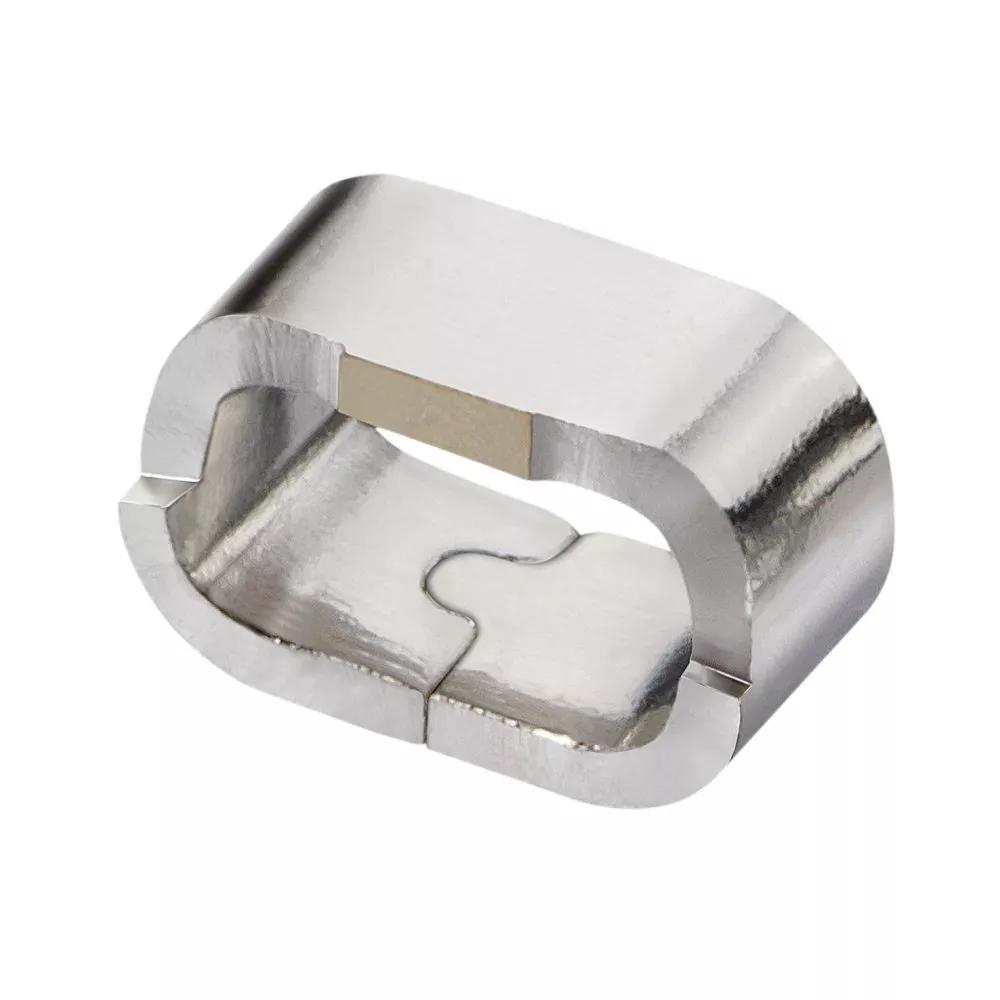

SMT Test Point (T+R)

Hardware - Test Point

Add to Favorites

2,367,108 in stock   Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Ideal for use with standard Test Probes, Test Lead clips and hooks.
  • 3.25 x 1.65mm footprint, 2mm high. Tin finish.
  • Packaged in Tape & Reel for automated placement.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A max

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.043g

Overall Dimensions (L x W x D) in mm:

3.25 x 1.65 x 2.00

Height of Connector above PCB:

2.00mm

Frequently Asked Questions Ask a Question

What is the material thickness?

The material thickness of this component is 0.39mm.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
