S1751-46

SMT Test Point

Hardware - Test Point

Order Sample

Add to Favorites

76,322 in stock Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Ideal for use with standard Test Probes, Test Lead clips and hooks.

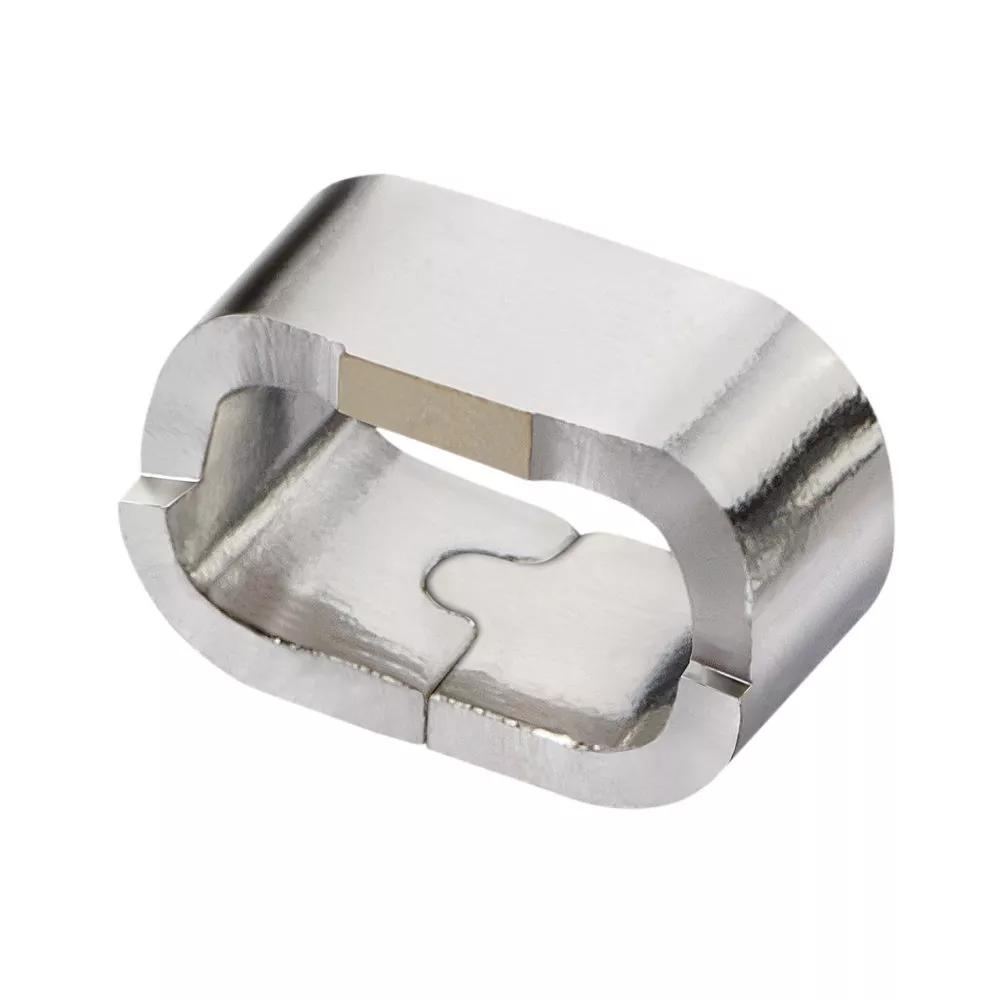

3.25 x 1.65mm footprint, 2mm high. Tin finish.
Packaged loose (bulk).

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Current Rating:

2A max

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.043g

Overall Dimensions (L x W x D) in mm:

3.25 x 1.65 x 2.00

Height of Connector above PCB:

2.00mm

Frequently Asked Questions Ask a Question

The material thickness of this component is 0.39mm.

Was this answer useful?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?
