S1731-46R

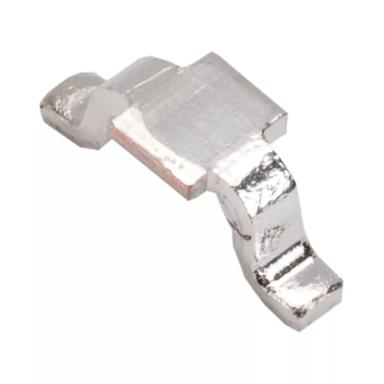

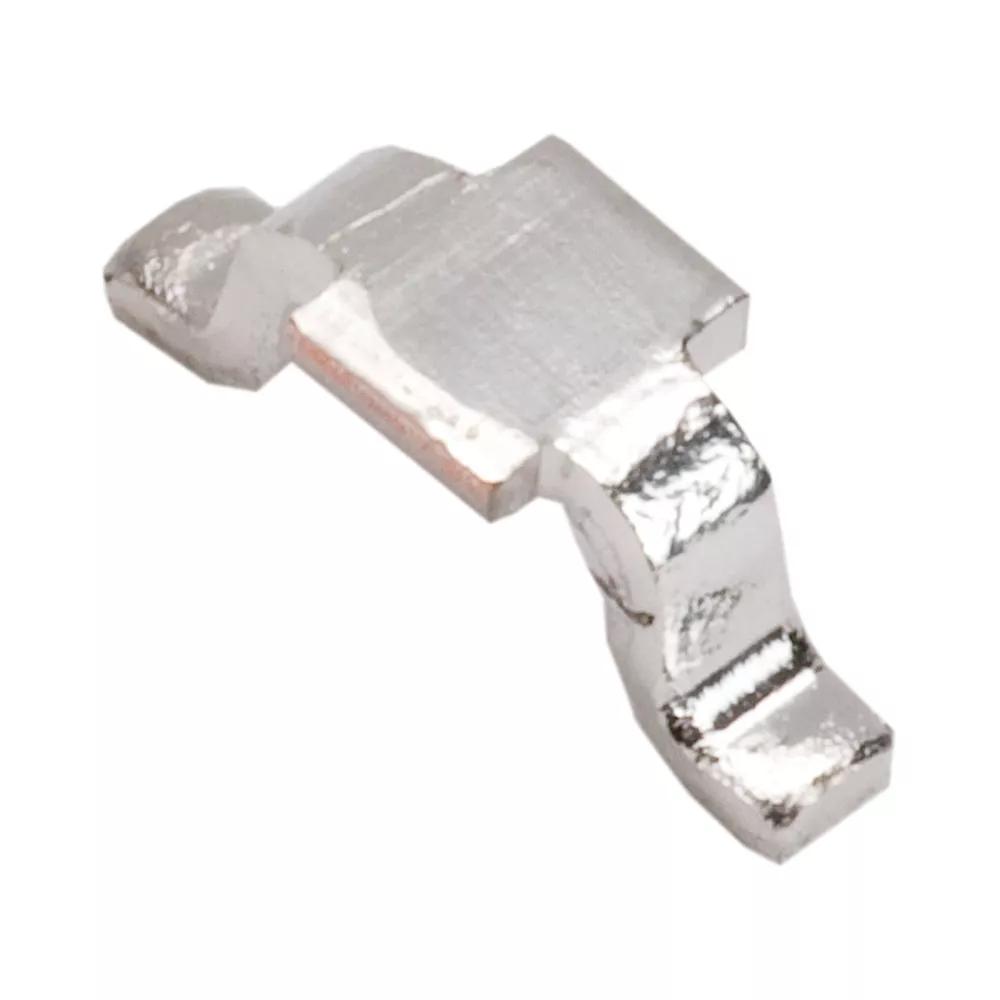

SMT Jumper Link (T+R)

Hardware - PCB Shorting Link, Fixed Jumper Link

  • To link PCB tracks where through-hole solutions are not possible/practical.
  • Low Profile. Tin finish.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connection Type:

Surface Mount (SMT)

Current Rating:

10A

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Base Material of Contact:

Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.081g

Overall Dimensions (L x W x D) in mm:

6.86 x 2.54 x 2.54

Height of Connector above PCB:

2.54mm

Availability

890,028 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 527500
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 275000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 37500
Distributor Anglia
Location Europe
Quantity (Updated Daily) 19900
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 13098
Distributor Farnell
Location Europe
Quantity (Updated Daily) 4850
Distributor Newark
Location USA
Quantity (Updated Daily) 4840
Distributor Newark
Location USA
Quantity (Updated Daily) 4840
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 2500

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

INSTRUCTION SHEETS

OTHER DOWNLOADS
