Home > S1621-46R
Active Product

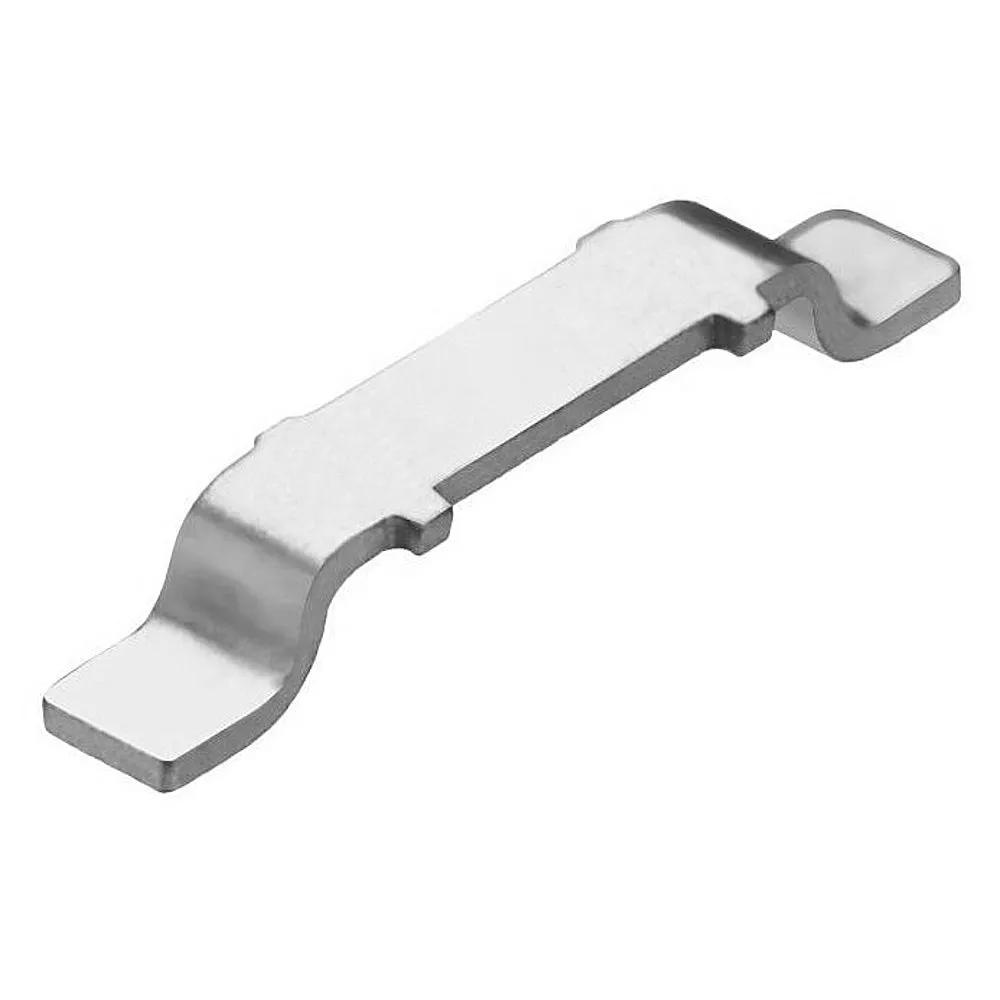

S1621-46R

SMT Fixed Jumper Link

Hardware - PCB Shorting Link, Fixed Jumper Link

Add to Favorites

2,156,142 in stock   Check availability

15 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • To link PCB tracks where through-hole solutions are not possible/practical.
  • Low Profile. Tin finish.
  • Packaged in Tape & Reel for automated placement.

Technical Details

Specification

Connection Type:

Surface Mount (SMT)

Current Rating:

10A

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.113g

Overall Dimensions (L x W x D) in mm:

12.30 x 2.30 x 1.80

Height of Connector above PCB:

1.80mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?
