S1621-46

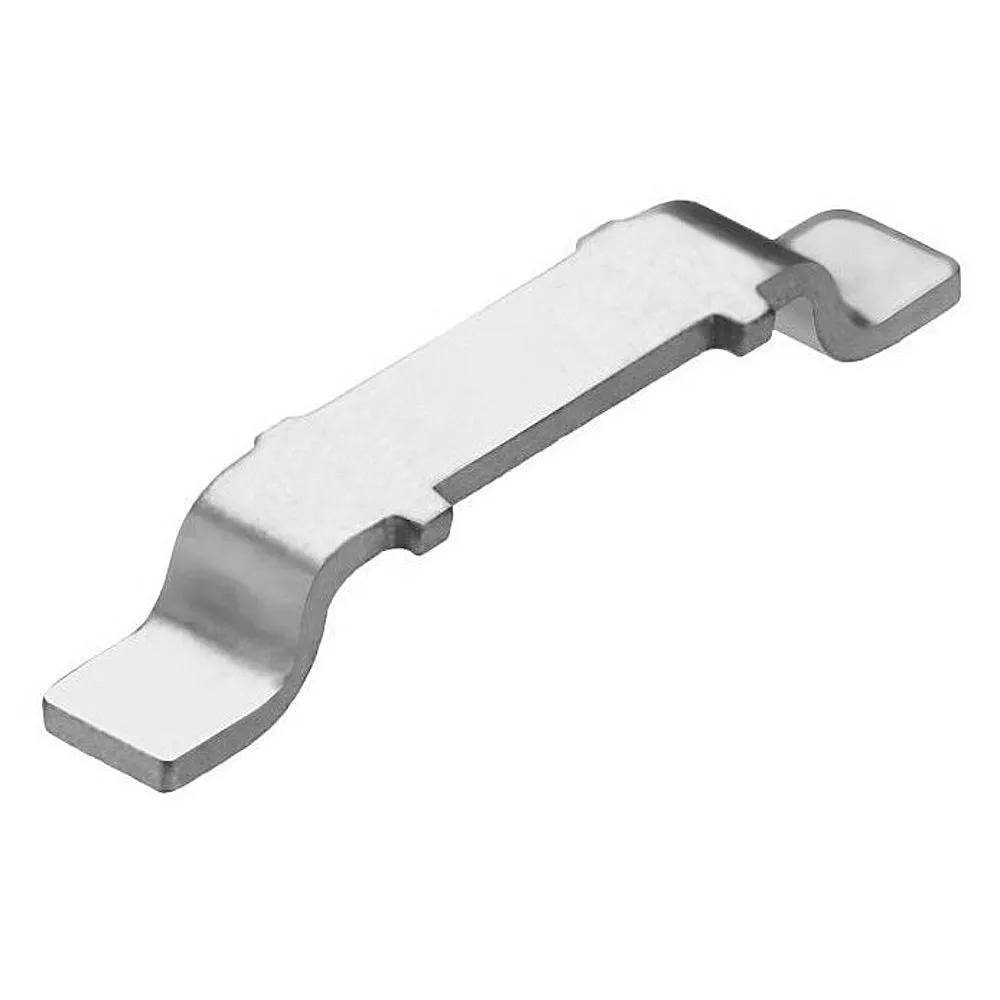

SMT Fixed Jumper Link

Hardware - PCB Shorting Link, Fixed Jumper Link

  • To link PCB tracks where through-hole solutions are not possible/practical.
  • Low Profile.
  • Tin finish.
Add to Favorites

Technical Details

Specification

Connection Type:

Surface Mount (SMT)

Current Rating:

10A

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.113g

Overall Dimensions (L x W x D) in mm:

12.30 x 2.30 x 1.80

Height of Connector above PCB:

1.80mm

Availability

83,433 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 38935
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 23000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 17492
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 4000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 6

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
