S1411-46R

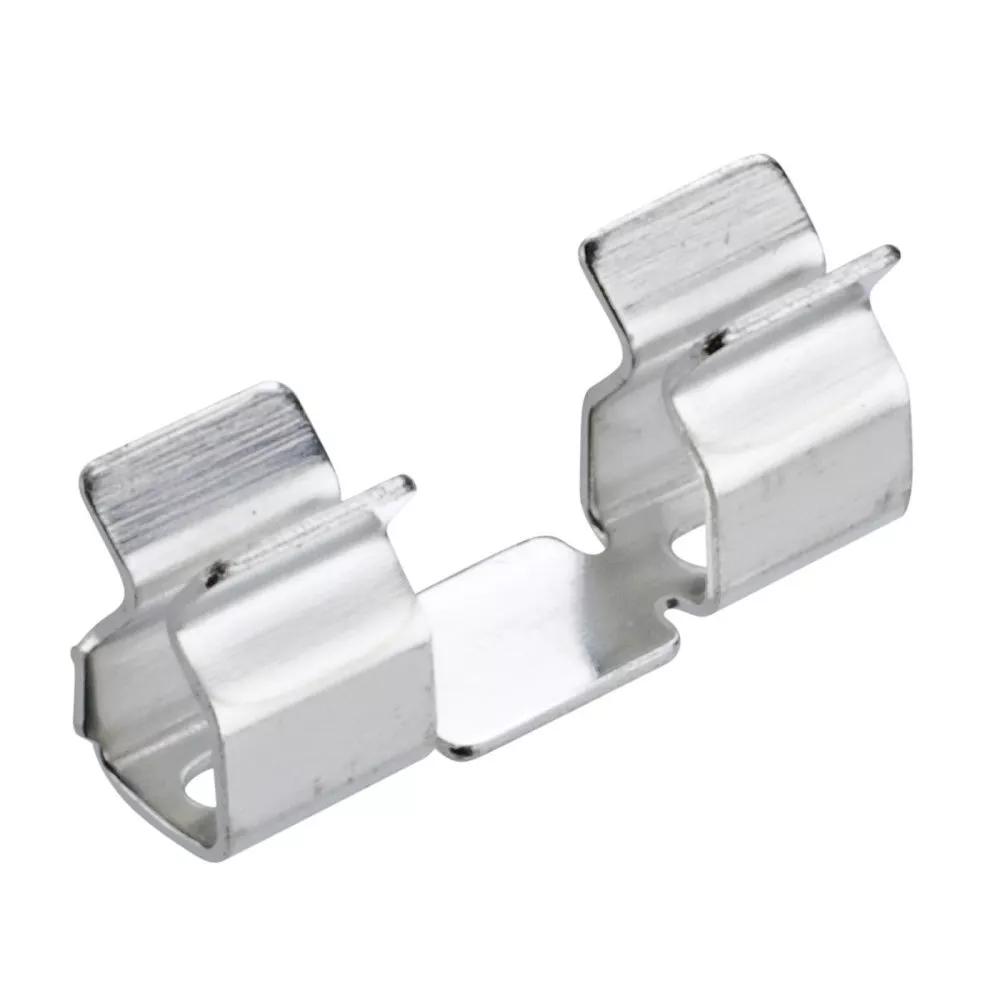

SMT RFI Shield Clip, Maxi (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • Maxi size (8.8mm long, 3.8mm high), for 0.7-1mm shield thickness. Tin finish on contact area and termination.
  • Packaged in Tape & Reel for automated placement.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.106g

Overall Dimensions (L x W x D) in mm:

8.79 x 2.28 x 3.65

Height of Connector above PCB:

3.65mm

Availability

221,124 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 70300
Distributor Anglia
Location Europe
Quantity (Updated Daily) 68970
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 53873
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 26081
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1900

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S1411-46R.pdf

ZIP

S1411-46R CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT026 - Shield Clips S1411, S1711, S1721 Environmental (Vibration, Shock, Bump)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for S1411 series

INSTRUCTION SHEETS

PDF

Product Training Module - EMC/RFI Shield Clips and Shield Cans

OTHER DOWNLOADS

PDF

3D PDF file - S1411-46R_3D.pdf

PDF

Catalog page - RFI Shield Clips (Maxi, Midi, Mini)

PDF

Catalog page - RFI Shield Clips Summary, Shield Can Specifications

PDF

Catalog page - EMC Shielding Introduction

PDF

Product Summary - EMC Shielding, SMT Clips and Cans
