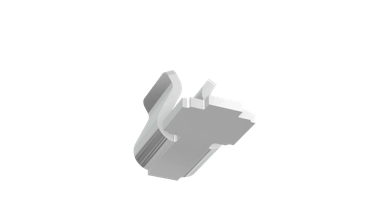

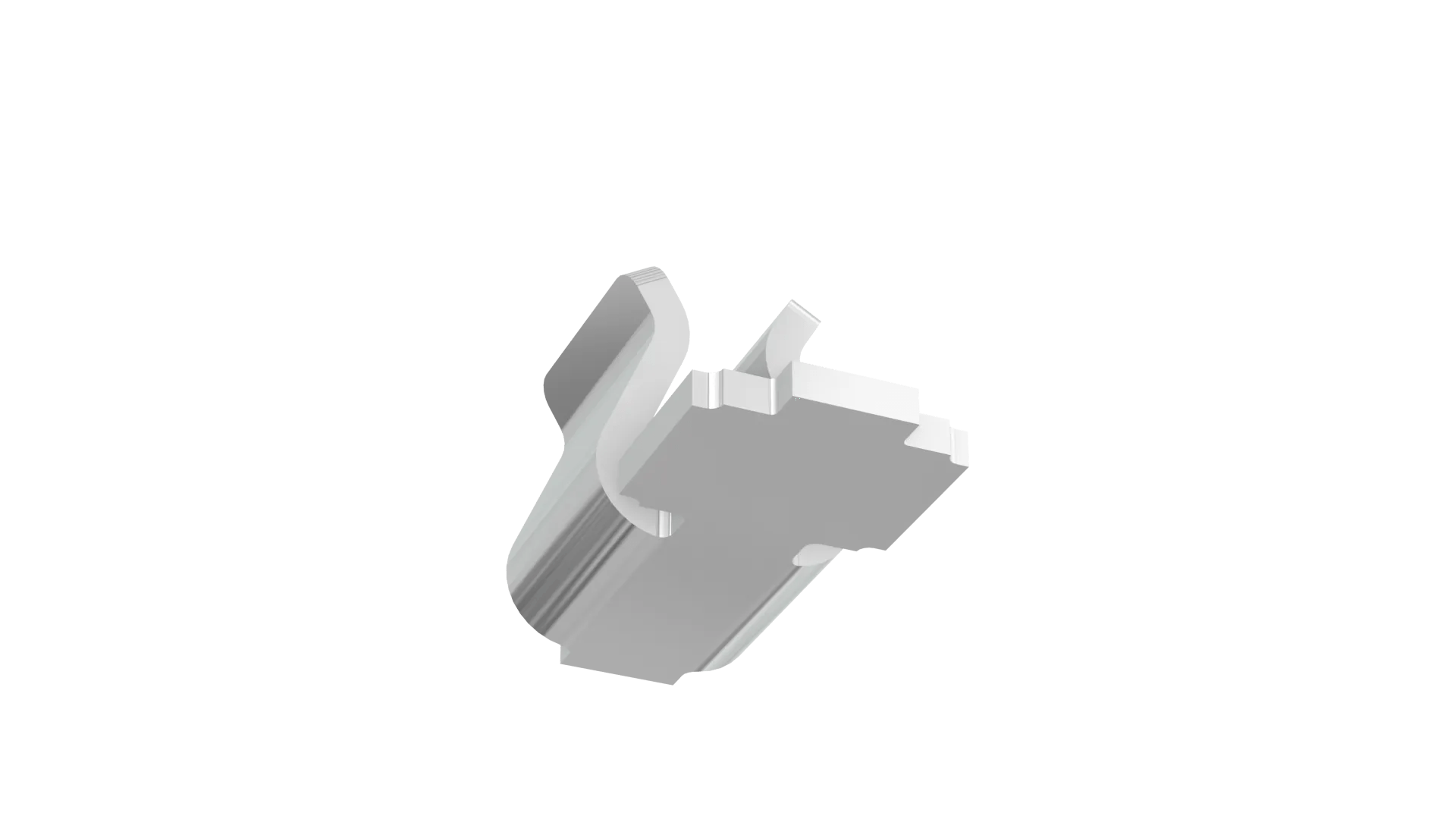

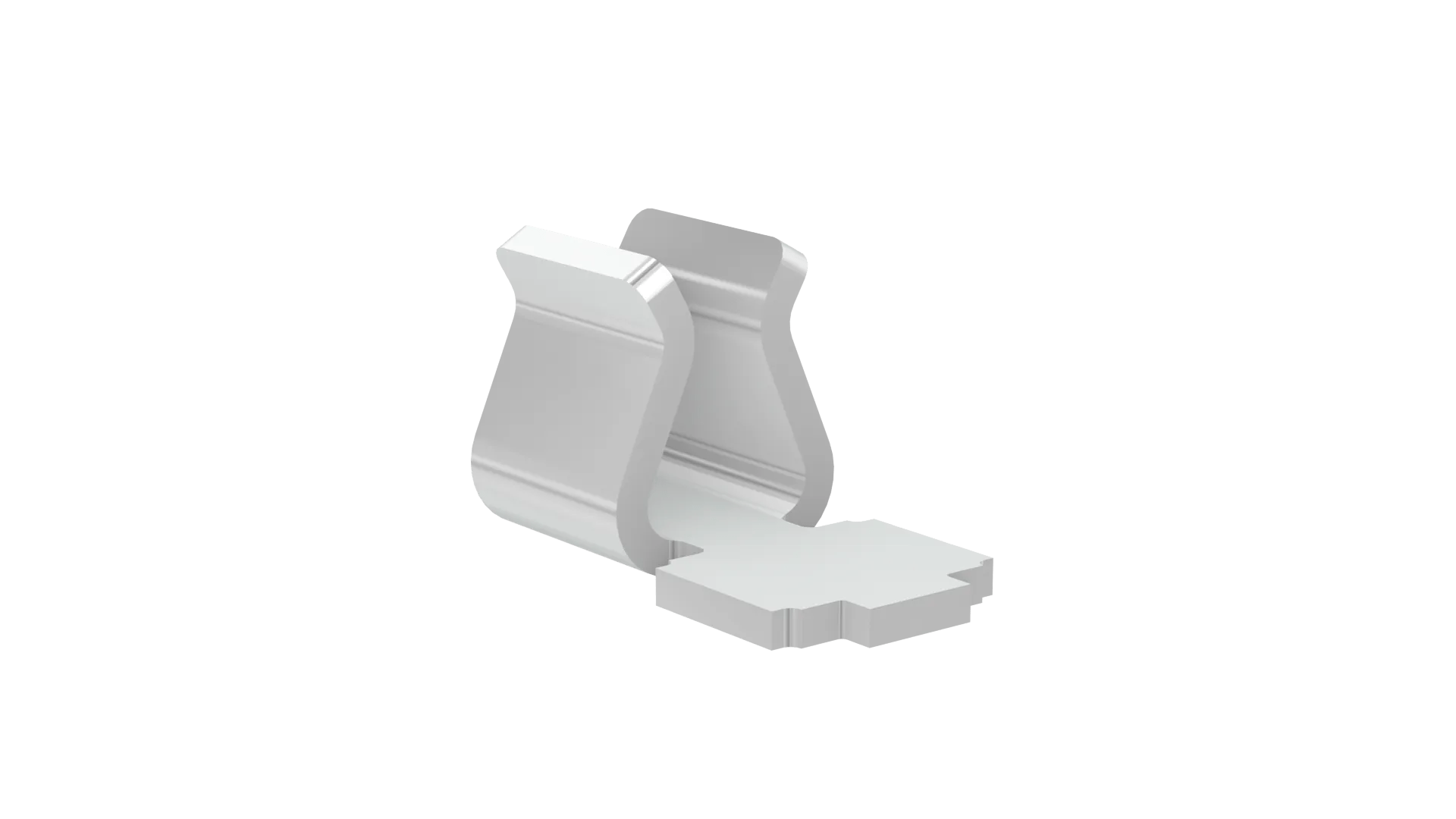

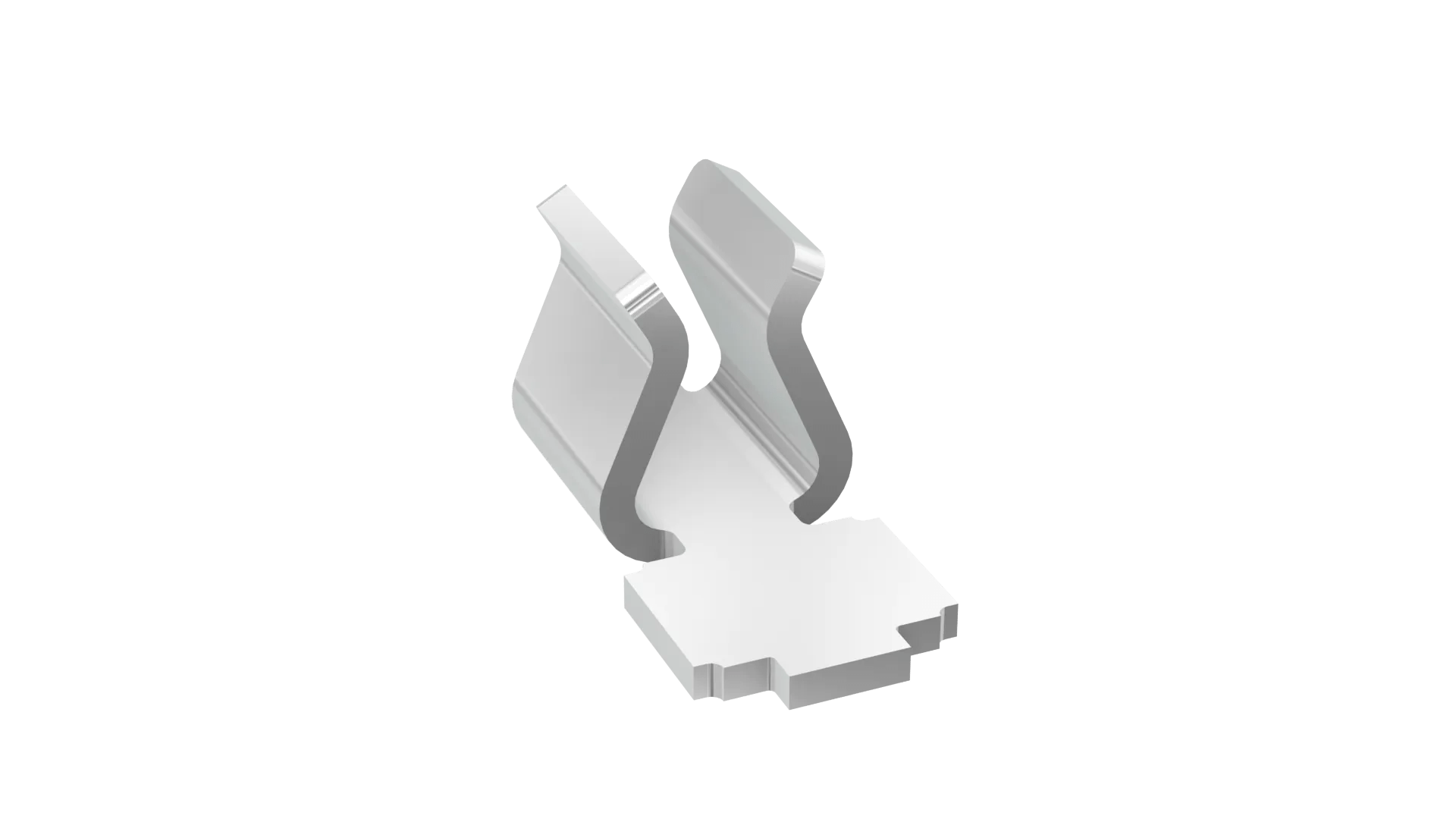

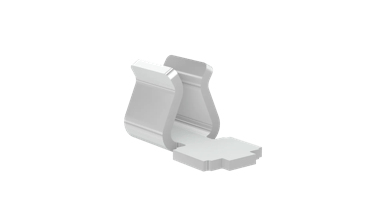

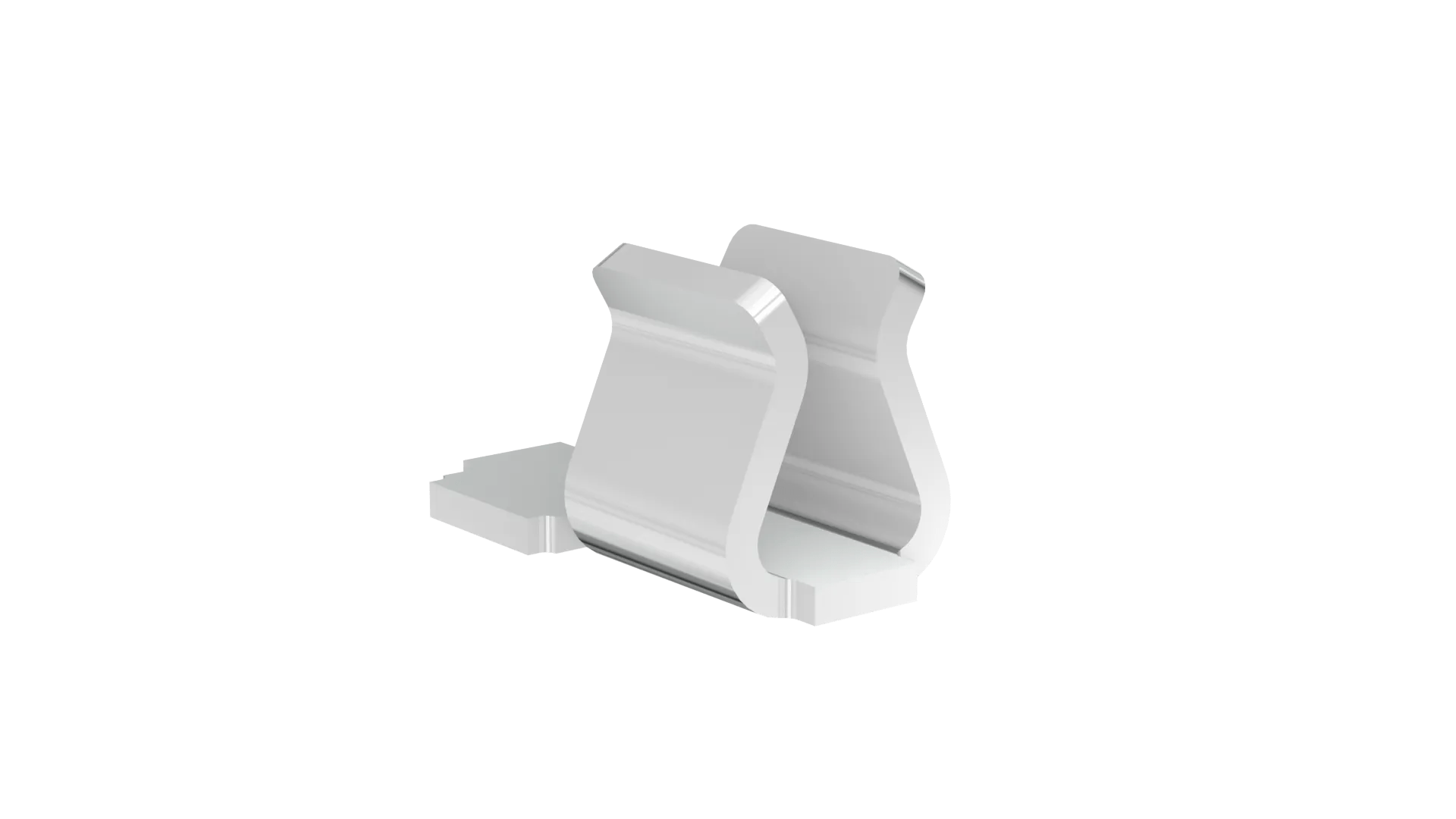

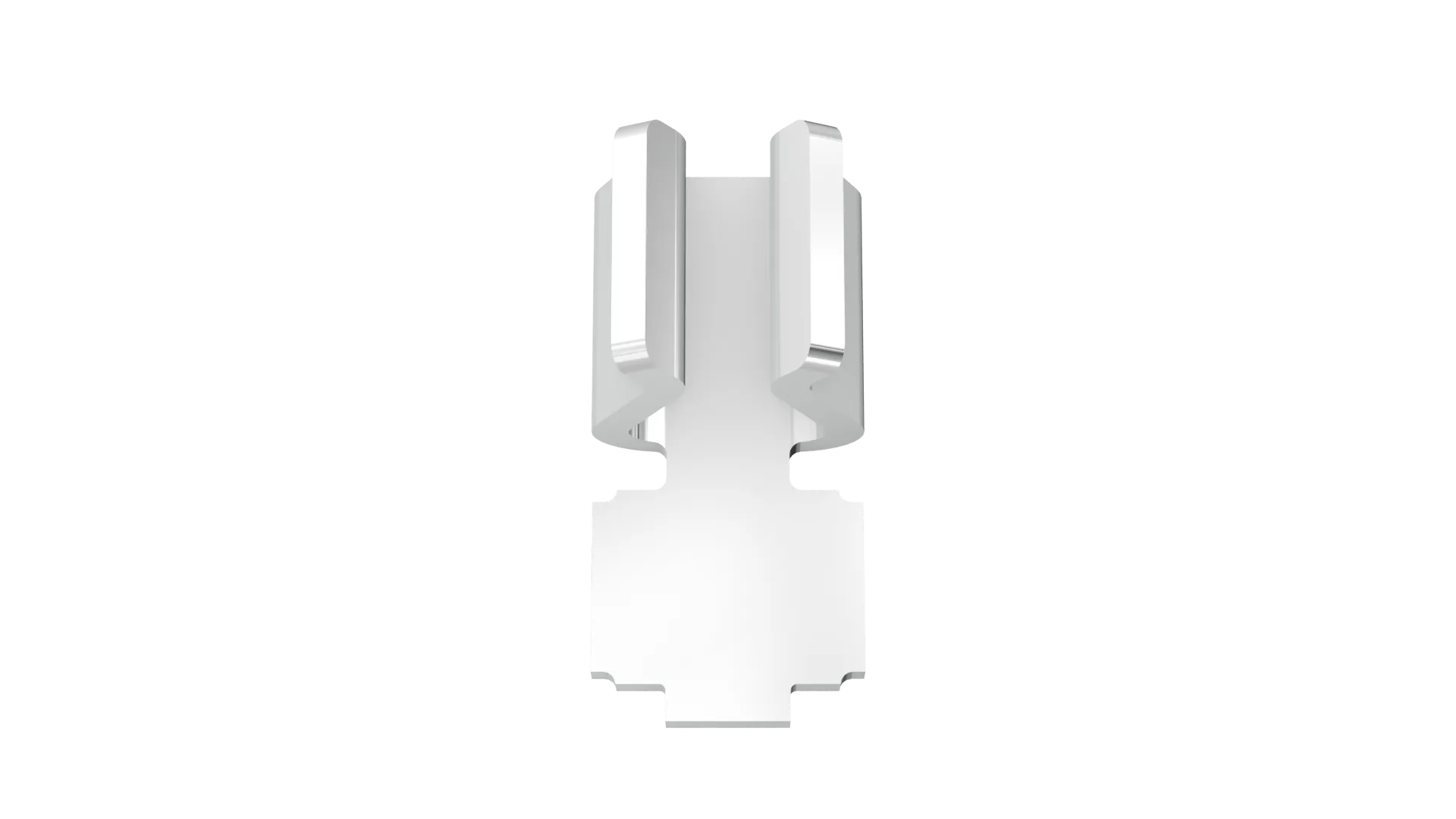

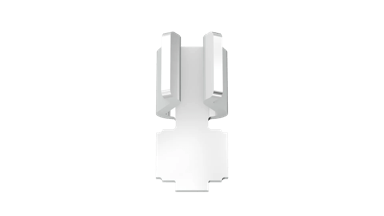

Surface mount top entry clip in a Compact size (2.3mm long, 1.28mm high), for 0.45-0.55mm shield thickness.
Tin finish on contact area and termination. Packaged in Tape and Reel for automated placement (pick and place directly on the clip base).
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Test Reports
Environmental Compliance
Technical Details
Product Characteristics
Entry Style
Top Entry
Connector Orientation
Straight
Operating Temperature
-55°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Materials
Finish / Plating on Contact Surface
100% Tin over Nickel
Base Material of Contact
Beryllium Copper
Packaging Style
Tape and Reel
Finish / Plating on Termination
100% Tin over Nickel
Dimensions
Weight
0.006g
Dimensions
2.30 x 1.10 x 1.28
Height of Connector above PCB
1.28mm
Downloads
Product Information
Product Training Module - EMC/RFI Shield Clips and Shield Cans
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for S0901-46R product
RoHS Declaration - S0901-46R
