Home > S07-46
Active

S07-46

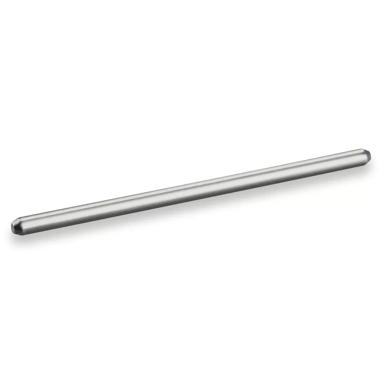

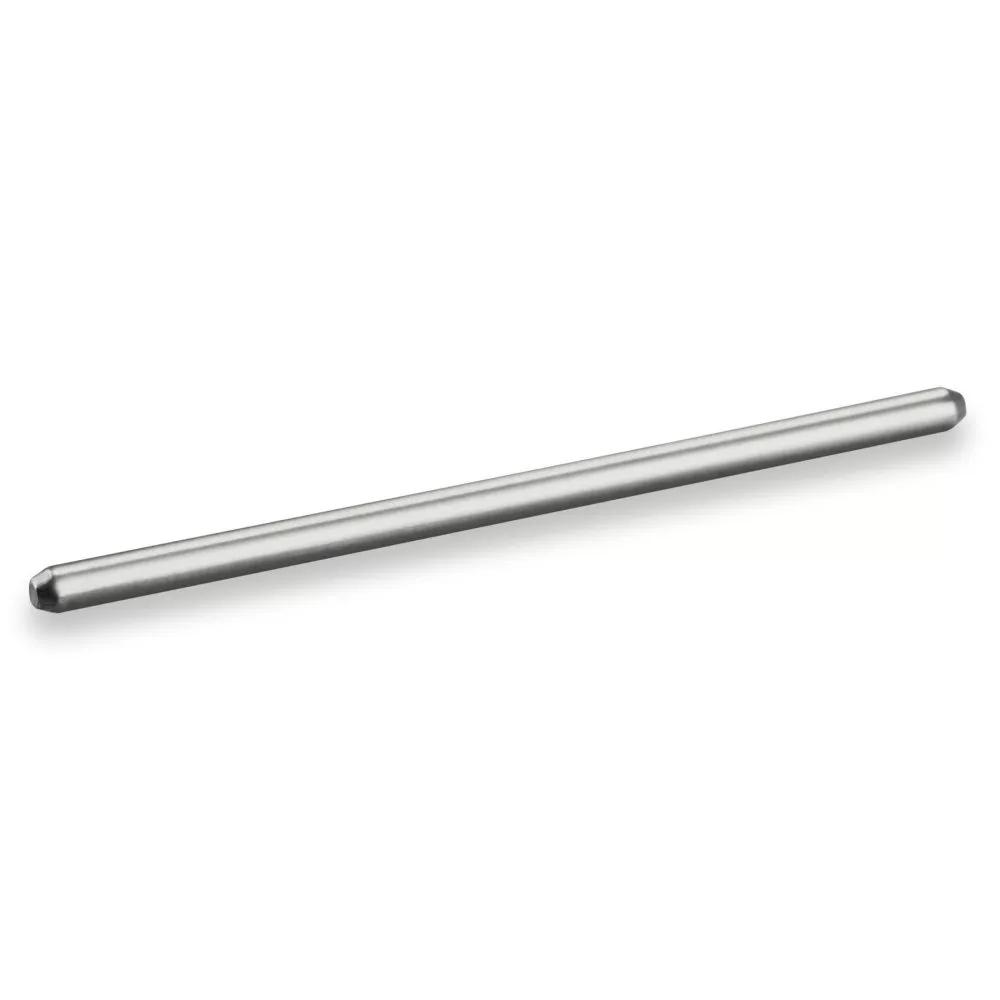

Removable Jumper Link Bar

Hardware - PCB Shorting Link, Removable Jumper Link

  • 23mm long removable bar for jumper link applications. Ø0.7mm cross-section.
  • Use with S8071-46R vertical clips or S8081-46R horizontal clips.
  • Tin finish.
Add to Favorites

Technical Details

Specification

Current Rating:

3 to 13A, dependent on usage configuration (check Test Report)

Operating Temperature:

-40°C to +85°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.08g

Overall Dimensions (L x W x D) in mm:

23.00 x Ø0.70

Availability

39,278 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 17860
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 15818

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 5600

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S0X-46.pdf

ZIP

S07-46 CAD Model (ZIP file containing STP and IGES)

Download

TEST REPORTS

PDF

Test Report HT055 - Removable Link (Clip and Bar) Current testing

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for S0X-46 series

INSTRUCTION SHEETS

PDF

Product Training Module - PCB Jumper Links (SMT, solid and removable)

OTHER DOWNLOADS

PDF

3D PDF file - S07-46_3D.pdf

PDF

Clip and Bar System - guide to the Clip and Bar (Removable Link) connection products
