S01-806005KIT

RFI Shield Can Development Kit

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

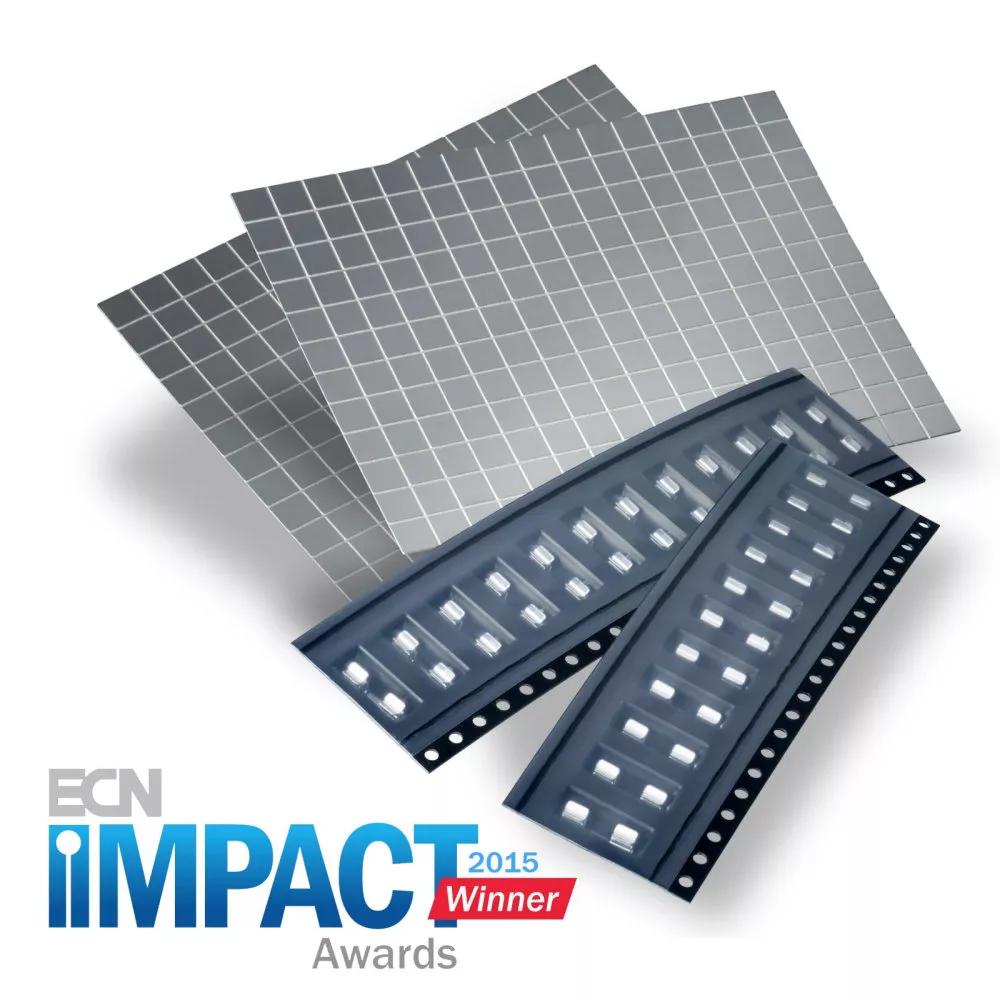

  • Make your own Shield Cans in minutes – ideal for fast protyping.
  • Development kit contains 2 x DIY Shield Can blanks (60 x 80mm), scored for easy folding (at 5mm spacing).
  • Also included is an instruction sheet, and 24 x S1711-46R Shield Can Clips.
Availability
Add to Favorites

Technical Details

Specification

Connection Type:

With SMT Shield Clips

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Unplated

Base Material of Contact:

Nickel Silver

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

67g

Overall Dimensions (L x W x D) in mm:

134.00 x 103.00 x 18.00

Availability

302 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 177
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 78
Distributor Farnell
Location Europe
Quantity (Updated Daily) 28
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 12
Distributor Anglia
Location Europe
Quantity (Updated Daily) 7

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
