S01-40400500

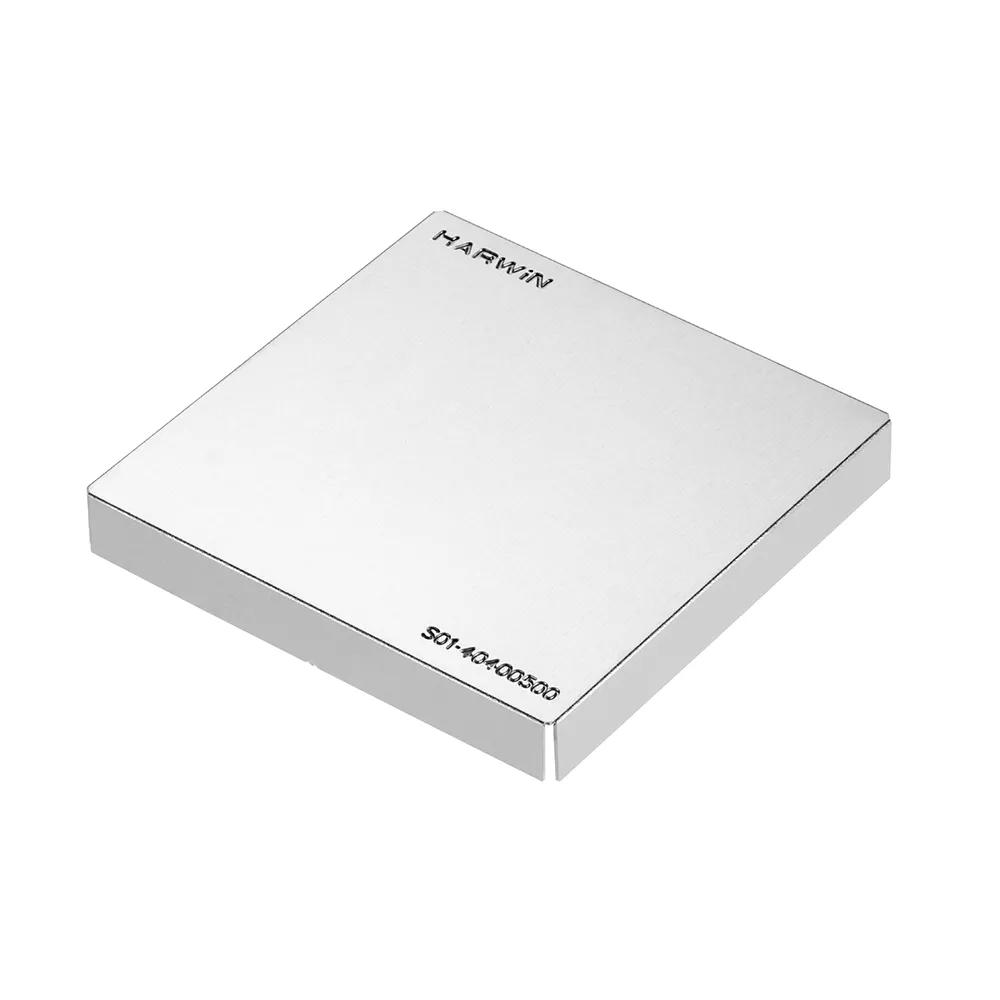

40x40mm RFI Shield Can 0.3mm thickness


EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • 40mm x 40mm, 5mm high, 0.3mm shield thickness.

  • Recommended for use with S1711-46R, S2711-46R, S0971-46R or S0921-46R Surface Mount Shield Clips.

  • Easy to use and rework - no additional soldering operations required.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Test Reports

Product Information

Technical Details

Specifications

  • PCB Mounting:

    With SMT Shield Clips

  • Finish / Plating on Contact Surface:

    Unplated

  • Base Material of Contact:

    Nickel Silver

  • Packaging Style:

    Single Pack

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    With SMT Shield Clips

  • Weight:

    6.209g

  • Dimensions:

    40.30 x 40.30 x 5.30

Downloads

    Environmental Compliance

  • S01-40400500

  • Material composition for S01-40400500 product

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - S01-XXXXXXX0.pdf

  • Outgassing data for Harwin products (plastics)

  • Test Reports

  • Test Report HT066 - Shield Clips S0911 + S0921 - General

  • Test Report HT026 - Shield Clips S1411 + S1711 + S1721 Environmental (Vibration + Shock + Bump)

  • Product Information

  • Product Training Module - EMC/RFI Shield Clips and Shield Cans

  • Product Datasheet - SHIELDING: EMC Shielding range (EZi)

  • SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force

  • SMT Spring Contacts - graph of complete range of heights and compression
