Home > R6104-02
Active

R6104-02

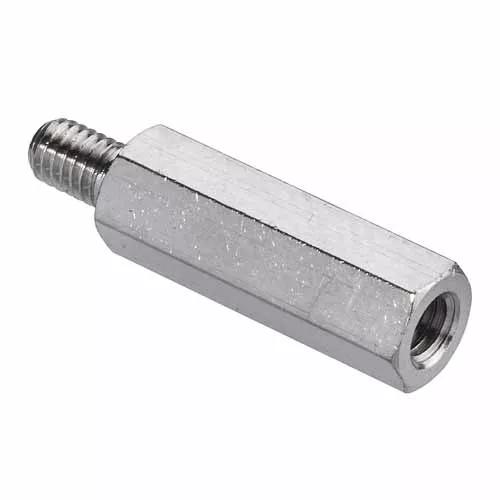

15.24mm M3 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Male/Female Threaded Hexagonal Brass Spacer. Nickel plating for corrosion resistance.
  • 5mm A/F body, 4.75mm male stud.
  • For use with stacking PC/104 boards (0.6″ height).
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.777g

Overall Dimensions (L x W x D) in mm:

19.99 x 5.00 A/F Hexagon

Body Length:

15.24mm (0.6")

Male Stud Length:

4.75mm

Thread Size:

M3

Availability

15,179 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 7509
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1060
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 410

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 6200

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R6104.pdf

ZIP

R6104-02 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for R6104-02 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)
