R40-6001402
Hardware - Spacer (Standoff, Pillar)

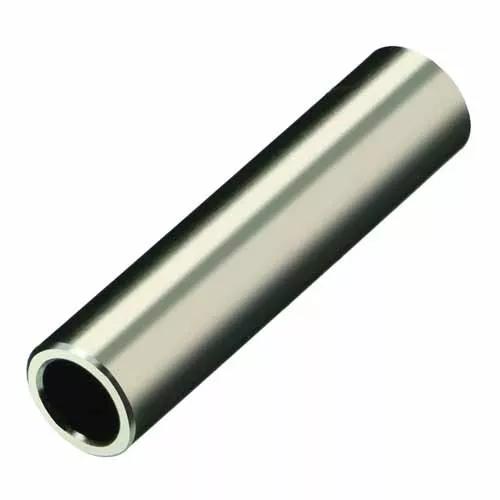

M4 Clearance Circular Brass Spacer, Ø6.35mm O/D.
14mm body length.
Nickel plating for corrosion resistance.
View Technical Details
In Stock
Getting Part Info...
Choose format to download:
Converting...
Bundling files together.
Your download will begin shortly.
Your part has been downloaded.
Something went wrong :(
Please drop us a line for more info.
We've sent a validation email. Check your email to complete the registration.
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Weight:
2.029g
Dimensions:
14.00 x Ø6.35
Body Length:
14.00mm
Thread Size:
M4 Clearance
Technical Drawing / Datasheet - R40-600.pdf
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R40-600 series
RoHS - R40-6001402
