Home > R40-6000502
Active

R40-6000502

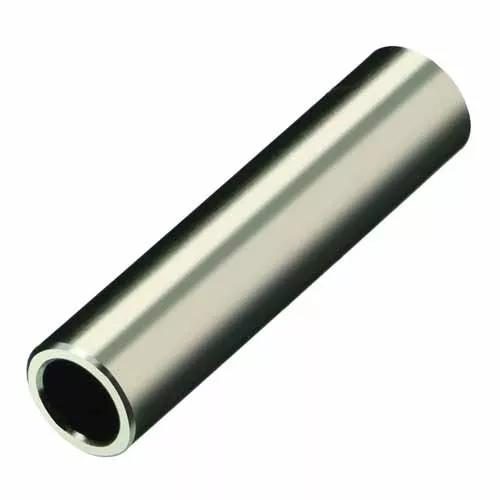

5.00mm M4 Metric Clearance Circular Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M4 Clearance Circular Brass Spacer, Ø6.35mm O/D.
  • 5mm body length.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.725g

Overall Dimensions (L x W x D) in mm:

5.00 x Ø6.35

Body Length:

5.00mm

Thread Size:

M4 Clearance

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status1798
Harwin
Global
Status7000
Mouser Electronics Inc
Global
Status623

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R40-600.pdf

ZIP

R40-6000502 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for R40-600 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Clearance Spacers
