Active Product

R40-3001802

18.00mm M4 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

Order Sample

Add to Favorites

14,953 in stock Check availability

4 similiar products View products

Samacsys account required

Download

No login is required

Product Description

M4 Male/Female Threaded Hexagonal Brass Spacer.
7mm A/F across body, 18mm body length, 8mm male stud.
Nickel plating for corrosion resistance.

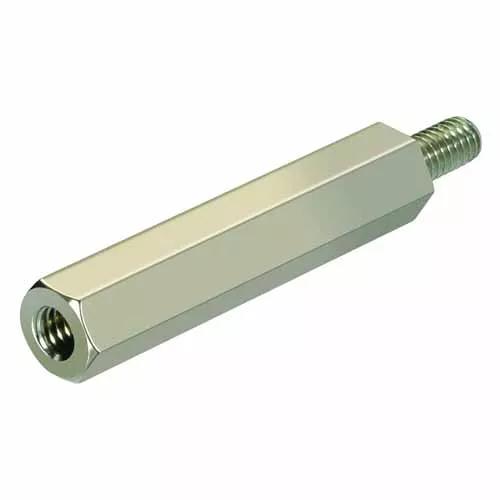

R40-3001802 - 18.00mm M4 Metric M/F Threaded Hex Brass Spacer/Pillar

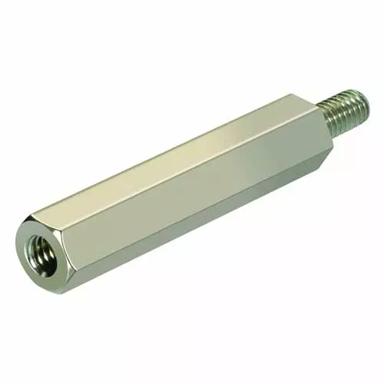

Representative image of product family

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Gender:

Male/Female

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

6.263g

Overall Dimensions (L x W x D) in mm:

26.00 x 7.00 A/F Hexagon

Body Length:

18.00mm

Male Stud Length:

8.00mm

Thread Size:

Frequently Asked Questions Ask a Question

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download
