R40-3001602

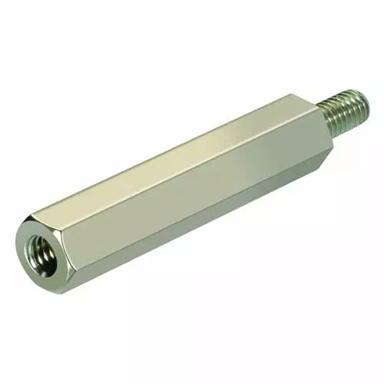

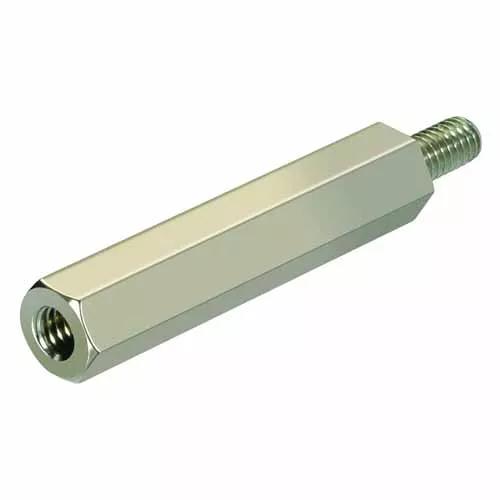

16.00mm M4 Metric M/F Threaded Hex Brass Spacer/Pillar
Hardware - Spacer (Standoff, Pillar)
9,603 in stock Check availability
4 similiar products View products
Samacsys account required
No login is required
Product Description
- M4 Male/Female Threaded Hexagonal Brass Spacer.
- 7mm A/F across body, 16mm body length, 8mm male stud.
- Nickel plating for corrosion resistance.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Male/Female
Materials
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
5.537g
Overall Dimensions (L x W x D) in mm:
24.00 x 7.00 A/F Hexagon
Body Length:
16.00mm
Male Stud Length:
8.00mm
Thread Size:
M4
Frequently Asked Questions Ask a Question
Do your metric spacers come in 0.5mm increments?
Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
