R40-3001402

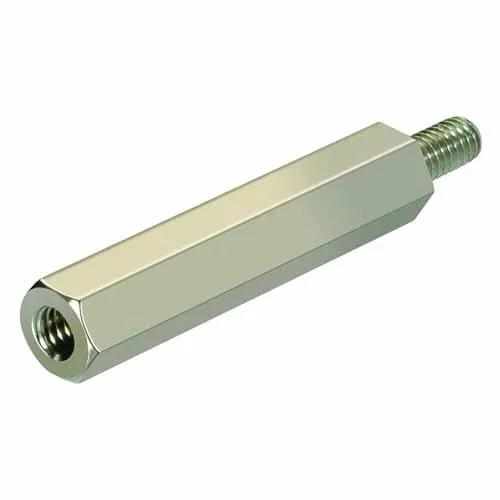

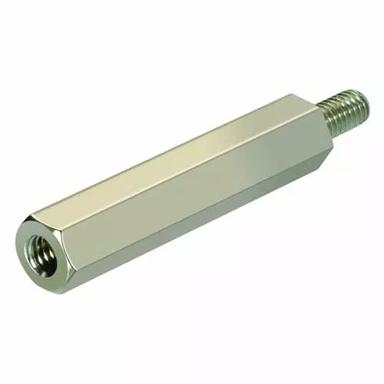

14.00mm M4 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M4 Male/Female Threaded Hexagonal Brass Spacer.
  • 7mm A/F across body, 14mm body length, 8mm male stud.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

4.811g

Overall Dimensions (L x W x D) in mm:

22.00 x 7.00 A/F Hexagon

Body Length:

14.00mm

Male Stud Length:

8.00mm

Thread Size:

M4

Availability

11,873 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 3915
Distributor Farnell
Location Europe
Quantity (Updated Daily) 920
Distributor Newark
Location USA
Quantity (Updated Daily) 920
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 518

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 5600

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
