R40-3000702

R40-3000702

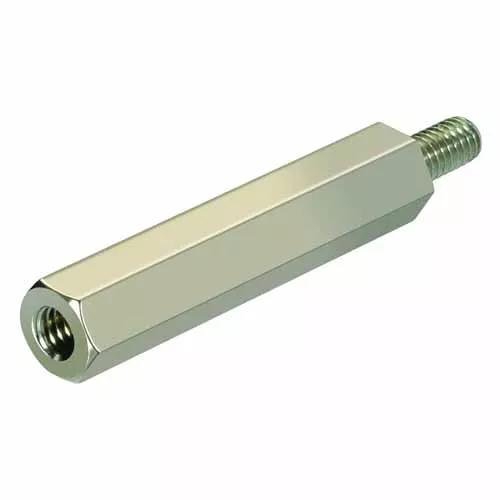

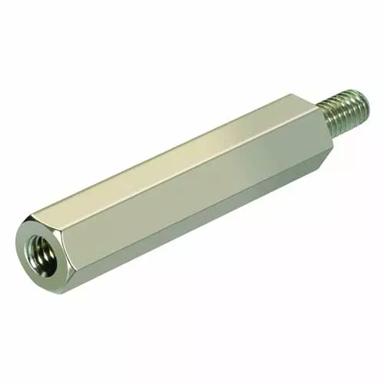

M4 Male/Female Threaded Hexagonal Brass Spacer, 7mm A/F, 7mm body, 8mm stud, Nickel finish

EZi

Traceparts account required

R40-3000702

M4 Male/Female Threaded Hexagonal Brass Spacer, 7mm A/F, 7mm body, 8mm stud, Nickel finish


Hardware - Spacer (Standoff, Pillar)

  • M4 Male/Female Threaded Hexagonal Brass Spacer.

  • 7mm A/F across body, 7mm body length, 8mm male stud.

  • Nickel plating for corrosion resistance.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Gender:

    Male/Female

  • Finish / Plating on Contact Surface:

    Nickel

  • Base Material of Contact:

    Brass

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with Exemption 6c

  • Weight:

    2.768g

  • Dimensions:

    15.00 x 7.00 A/F Hexagon

  • Country of Origin:

    GB

  • Body Length:

    7.00mm

  • Stud Length:

    8.00mm

  • Thread Size:

    M4

Downloads

    Environmental Compliance

  • RoHS - R40-3000702

  • Material composition for R40-300 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - R40-300.pdf

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
