R40-1002502
Hardware - Spacer (Standoff, Pillar)

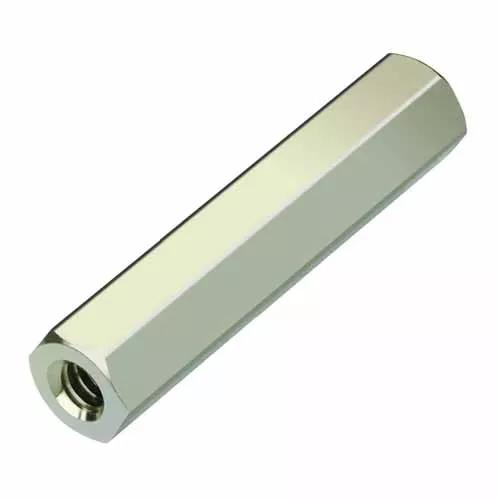

M4 Threaded Hexagonal Brass Spacer, 7mm A/F.
25mm body length.
Nickel plating for corrosion resistance.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Weight:
6.819g
Dimensions:
25.00 x 7.00 A/F Hexagon
Body Length:
25.00mm
Thread Size:
M4
Technical Drawing / Datasheet - R40-100.pdf
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R40-100 series
RoHS - R40-1002502
