Active

R40-1001002

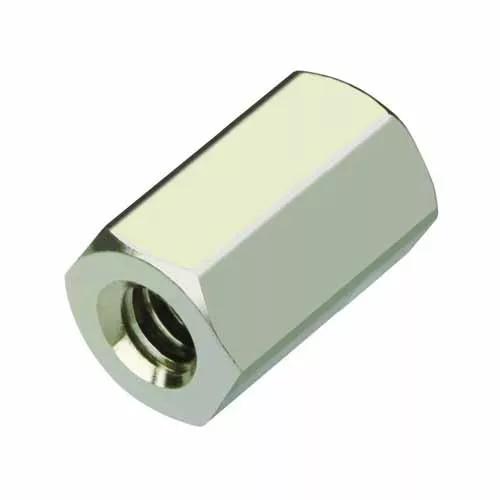

10.00mm M4 Metric Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M4 Threaded Hexagonal Brass Spacer, 7mm A/F.
  • 10mm body length.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

2.725g

Overall Dimensions (L x W x D) in mm:

10.00 x 7.00 A/F Hexagon

Body Length:

10.00mm

Thread Size:

M4

Availability

Limited availability or made-to-order
Distributor Location Quantity
Anglia
Europe
Status5922
Digi-Key
Global
Status6880
Farnell
Europe
Status54
Harwin
Europe
Status2500
Mouser Electronics Inc
Global
Status9618
Newark
USA
Status32

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R40-100.pdf

ZIP

R40-1001002 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for R40-100 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

OTHER DOWNLOADS

PDF

Catalog page - Threaded Female Spacers
