Active Product

R30-9401800

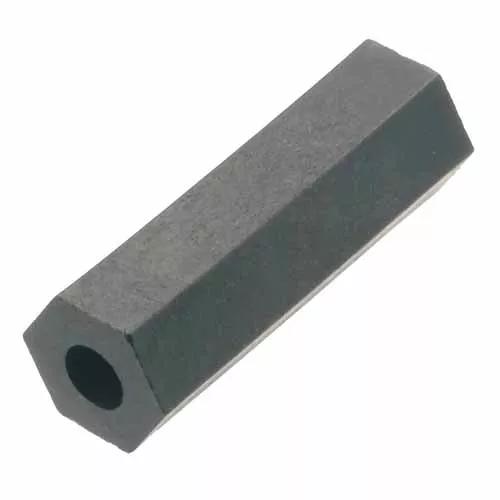

18.00mm Through-Hole Hex Plastic Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

Order Sample

Add to Favorites

21,832 in stock Check availability

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Hexagonal Plastic Through-hole Spacer, 6.35mm A/F, Ø2.95mm I/D.
18mm body length.
Suitable for use with a 3mm (No. 4) self-tapping screw.

R30-9401800 - 18.00mm Through-Hole Hex Plastic Spacer/Pillar

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Female

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.99g

Overall Dimensions (L x W x D) in mm:

18.00 x 6.35 A/F Hexagon

Body Length:

18.00mm

Thread Size:

3mm Self-tapping

Frequently Asked Questions Ask a Question

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
