R30-9401400

R30-9401400

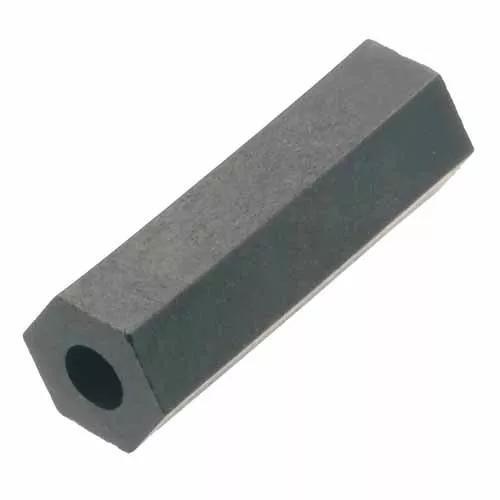

Hexagonal Plastic Spacer, suitable for a No. 4 self-tapping screw, 6.35mm A/F, 14mm body length

EZi

Traceparts account required

R30-9401400

Hexagonal Plastic Spacer, suitable for a No. 4 self-tapping screw, 6.35mm A/F, 14mm body length


Hardware - Spacer (Standoff, Pillar)

  • Hexagonal Plastic Through-hole Spacer, 6.35mm A/F, √ò2.95mm I/D.

  • 14mm body length.

  • Suitable for use with a 3mm (No. 4) self-tapping screw.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Gender:

    Female

  • Housing Material:

    PBT

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Bulk/Loose

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Weight:

    0.77g

  • Dimensions:

    14.00 x 6.35 A/F Hexagon

Downloads

    Environmental Compliance

  • R30-9401400

  • Material composition for R30-940 series

  • Environmental Legislation Statement - includes all material legislations

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - R30-940.pdf

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
