Active

R30-9400800

8.00mm Through-Hole Hex Plastic Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

Hexagonal Plastic Through-hole Spacer, 6.35mm A/F, Ø2.95mm I/D.
8mm body length.
Suitable for use with a 3mm (No. 4) self-tapping screw.

Request Samples

Availability

R30-9400800 - 8.00mm Through-Hole Hex Plastic Spacer/Pillar

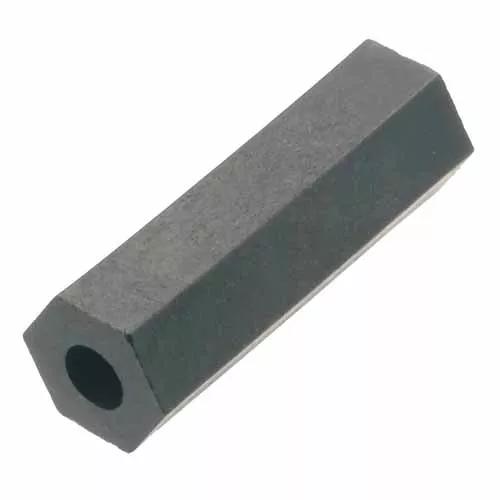

Representative image of product family

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Female

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.44g

Overall Dimensions (L x W x D) in mm:

8.00 x 6.35 A/F Hexagon

Body Length:

8.00mm

Thread Size:

3mm Self-tapping

Availability

17,189 in stock

Limited availability or made-to-order

Distributor Location Quantity (Updated Daily)

Distributor Mouser Electronics Inc

Location Global

Quantity (Updated Daily) 7868

Buy now

Distributor Digi-Key

Location Global

Quantity (Updated Daily) 6436

Buy now

Distributor Farnell

Location Europe

Quantity (Updated Daily) 2385

Buy now

Distributor Genalog

Location Europe

Quantity (Updated Daily) 500

Buy now

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

PDF

Technical Drawing / Datasheet - R30-940.pdf

ZIP

R1811B91 CAD Model (ZIP file containing STP)

Download

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for R30-940 series

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)

PDF

Outgassing data for Harwin products (plastics)

Want to talk to someone?

Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.

Ask an Expert
Book a meeting
