R30-9400600
Hardware - Spacer (Standoff, Pillar)

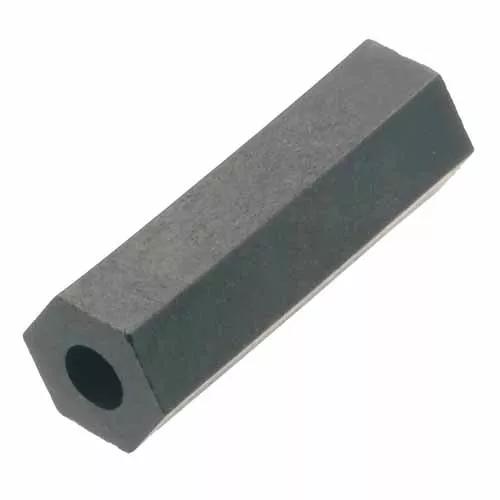

Hexagonal Plastic Through-hole Spacer, 6.35mm A/F, Ø2.95mm I/D.
6mm body length.
Suitable for use with a 3mm (No. 4) self-tapping screw.
View Technical Details
Checking stock availability...
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Housing Material:
PBT
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Housing Colour:
Black
Weight:
0.33g
Dimensions:
6.00 x 6.35 A/F Hexagon
Body Length:
6.00mm
Thread Size:
3mm Self-tapping
Technical Drawing / Datasheet - R30-940.pdf
Outgassing data for Harwin products (plastics)
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R30-940 series
RoHS - R30-9400600
