Home > R30-9400500
Active

R30-9400500

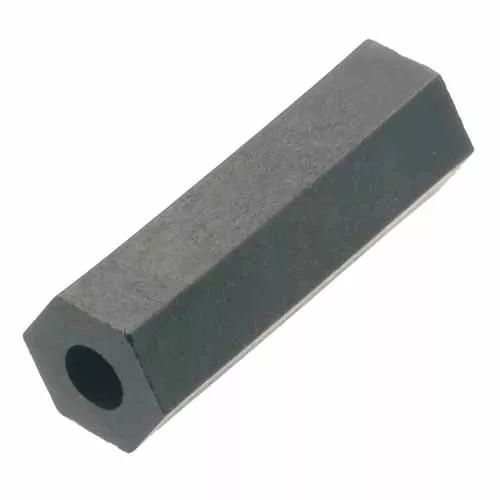

5.00mm Through-Hole Hex Plastic Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • Hexagonal Plastic Through-hole Spacer, 6.35mm A/F, Ø2.95mm I/D.
  • 5mm body length.
  • Suitable for use with a 3mm (No. 4) self-tapping screw.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.275g

Overall Dimensions (L x W x D) in mm:

5.00 x 6.35 A/F Hexagon

Body Length:

5.00mm

Thread Size:

3mm Self-tapping

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status2633
Harwin
Europe
Status11000
Mouser Electronics Inc
Global
Status3060

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-940.pdf

ZIP

R30-9400500 CAD Model (ZIP file containing STP)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for R30-940 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of the Hardware products (Spacers, Terminals, Shorting Links)
