R30-6701094
Hardware - Spacer (Standoff, Pillar)

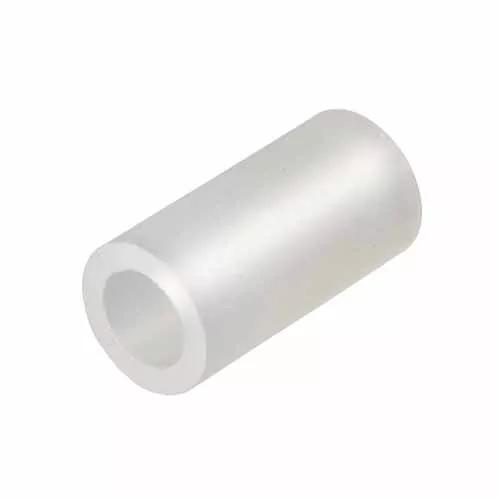

M3 Clearance Circular Plastic Spacer, Ø5mm O/D.
10mm body length.
View Technical Details
Out of Stock
Getting Part Info...
Choose format to download:
Converting...
Bundling files together.
Your download will begin shortly.
Your part has been downloaded.
Something went wrong :(
Please drop us a line for more info.
We've sent a validation email. Check your email to complete the registration.
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
TW
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Housing Material:
Polyamide (Nylon) 66
Flammability Rating:
UL94V-2
Packaging Style:
Bulk/Loose
Housing Colour:
Natural
Weight:
0.188g
Dimensions:
10.00 x Ø5.00
Body Length:
10.00mm
Thread Size:
M3 Clearance
Technical Drawing / Datasheet - R30-670.pdf
Outgassing data for Harwin products (plastics)
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R30-670 series
RoHS - R30-6701094
