R30-6201414

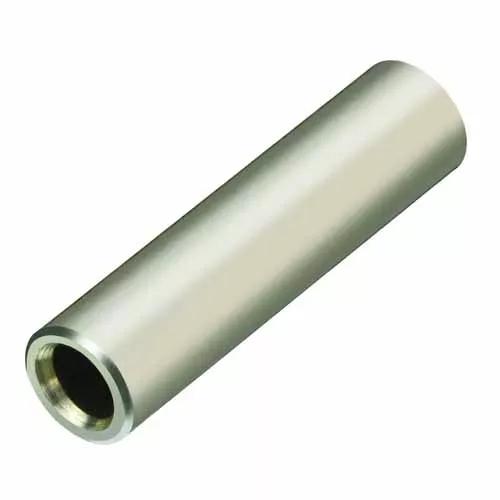

14.00mm M3 Metric Clearance Circular Aluminium Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Clearance Circular Aluminium Spacer, Ø5mm O/D.
  • 14mm body length.
  • Clear Passivation coating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Clear Passivation

Base Material of Contact:

Aluminium

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.431g

Overall Dimensions (L x W x D) in mm:

14.00 x Ø5.00

Body Length:

14.00mm

Thread Size:

M3 Clearance

Availability

19,114 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 5202
Distributor Farnell
Location Europe
Quantity (Updated Daily) 4506
Distributor Newark
Location USA
Quantity (Updated Daily) 6

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 9400

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
