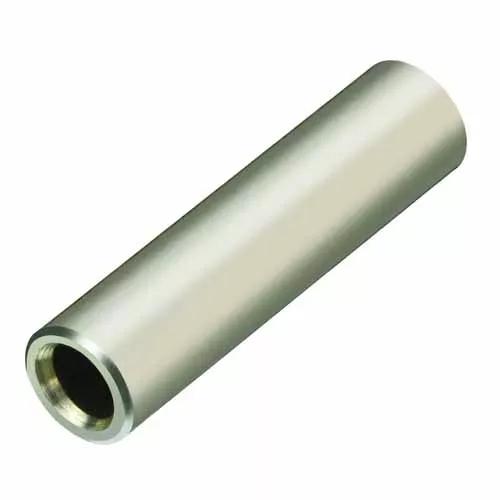

R30-6201014
Hardware - Spacer (Standoff, Pillar)
M3 Clearance Circular Aluminium Spacer, Ø5mm O/D.
10mm body length.
Clear Passivation coating for corrosion resistance.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Finish / Plating on Contact Surface:
Clear Passivation
Base Material of Contact:
Aluminium
Packaging Style:
Bulk/Loose
Weight:
0.308g
Dimensions:
10.00 x Ø5.00
Body Length:
10.00mm
Thread Size:
M3 Clearance
Product Change Notification 31-May-2016 - R30-620
Technical Drawing / Datasheet - R30-620.pdf
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R30-620 series
RoHS - R30-6201014
