Active Product

R30-5001002

10.00mm M3 Metric Threaded Circular Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

Order Sample

Add to Favorites

38,689 in stock Check availability

3 similiar products View products

Samacsys account required

Download

No login is required

Product Description

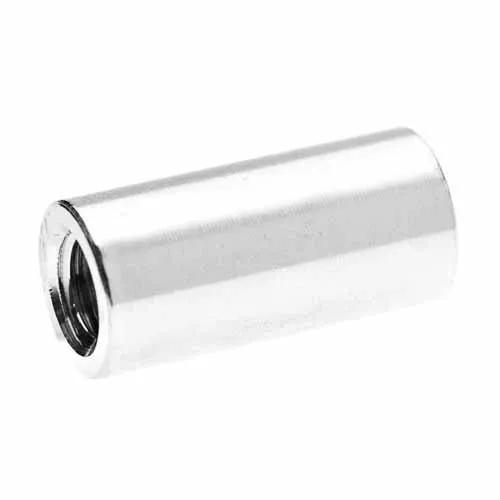

M3 Threaded Circular Brass Spacer, Ø4.76mm O/D.
10mm body length.
Nickel plating for corrosion resistance.

R30-5001002 - 10.00mm M3 Metric Threaded Circular Brass Spacer/Pillar

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Gender:

Female

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

1.053g

Overall Dimensions (L x W x D) in mm:

10.00 x Ø4.76

Body Length:

10.00mm

Thread Size:

Frequently Asked Questions Ask a Question

The REACH statement for all our products is given on this product page under Downloads – look for Environmental Compliance in this section, and you will see the REACH statement listed for download. As these spacers are made using a 3% Lead free maching brass (which you can see listed in the Material Compositon data), this Lead content is reportable as an SVHC. Please read the REACH statement for further information, and contact our Compliance Team if you have any further questions.

Was this answer useful?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

Want to talk to someone?

Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.

Ask an Expert
Book a meeting
