R30-4000502

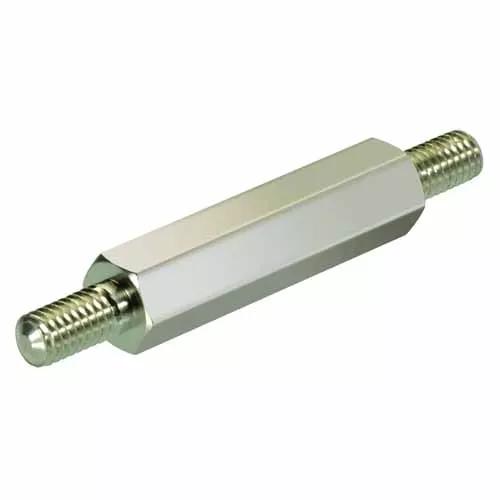

5.00mm M3 Metric M/M Threaded Hex Brass Spacer/Pillar
Hardware - Spacer (Standoff, Pillar)
12,901 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Product Description
- M3 Male/Male Threaded Hexagonal Brass Spacer.
- 5mm A/F across body, 5mm body length, 6mm male studs.
- Nickel plating for corrosion resistance.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Male/Male
Materials
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.526g
Overall Dimensions (L x W x D) in mm:
17.00 x 5.00 A/F Hexagon
Body Length:
5.00mm
Male Stud Length:
6.00mm
Thread Size:
M3
Frequently Asked Questions Ask a Question
What is the REACH position for your R30 brass standoffs?
The REACH statement for all our products is given on this product page under Downloads – look for Environmental Compliance in this section, and you will see the REACH statement listed for download. As these spacers are made using a 3% Lead free maching brass (which you can see listed in the Material Compositon data), this Lead content is reportable as an SVHC. Please read the REACH statement for further information, and contact our Compliance Team if you have any further questions.
Was this answer useful?
Do your metric spacers come in 0.5mm increments?
Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
Was this answer useful?
Do your metric spacers come in 0.5mm increments?
Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
Was this answer useful?
