R30-3012002

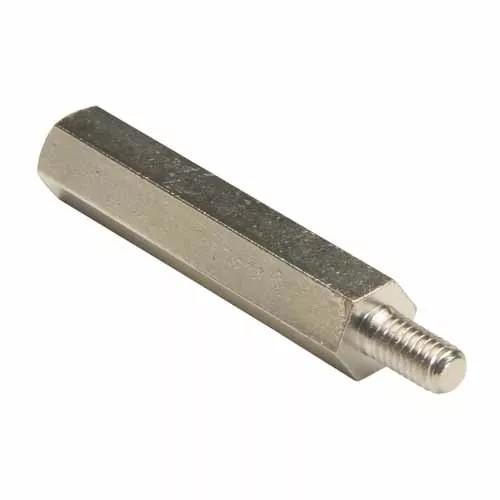

20.00mm M3 Metric M/F Threaded Hex Brass Spacer/Pillar
Hardware - Spacer (Standoff, Pillar)
- M3 Male/Female Threaded Hexagonal Brass Spacer.
- 5mm A/F across body, 20mm body length, 8mm male stud.
- Nickel plating for corrosion resistance.
Technical Details
Specification
EU RoHS Status:
Contact Gender:
Male/Female
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Materials
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
3.493g
Overall Dimensions (L x W x D) in mm:
28.00 x 5.00 A/F Hexagon
Body Length:
20.00mm
Male Stud Length:
8.00mm
Thread Size:
M3
Availability
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
* Please request minimum quantities, lead times and pricing from an authorized distributor.
Questions & Answers Ask a Question
What is the REACH position for your R30 brass standoffs?
The REACH statement for all our products is given on this product page under Downloads – look for Environmental Compliance in this section, and you will see the REACH statement listed for download. As these spacers are made using a 3% Lead free maching brass (which you can see listed in the Material Compositon data), this Lead content is reportable as an SVHC. Please read the REACH statement for further information, and contact our Compliance Team if you have any further questions.
Do your metric spacers come in 0.5mm increments?
Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.
