R30-3008002
Hardware - Spacer (Standoff, Pillar)

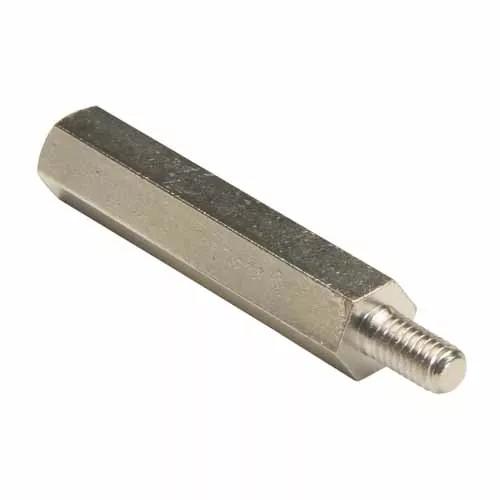

M3 Male/Female Threaded Hexagonal Brass Spacer.
5mm A/F across body, 80mm body length, 6mm male stud.
Nickel plating for corrosion resistance.
View Technical Details
In Stock
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with Exemption 6c
Finish / Plating on Contact Surface:
Nickel
Base Material of Contact:
Brass
Packaging Style:
Bulk/Loose
Weight:
14.503g
Dimensions:
86.00 x 5.00 A/F Hexagon
Body Length:
80.00mm
Stud Length:
6.00mm
Thread Size:
M3
Technical Drawing / Datasheet - R30-300.pdf
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R30-300 series
RoHS - R30-3008002
