R30-3001002

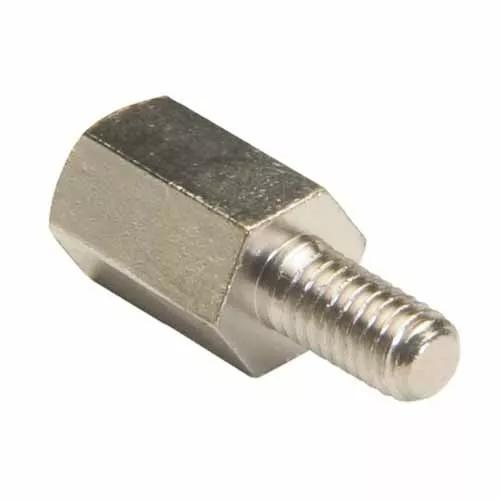

10.00mm M3 Metric M/F Threaded Hex Brass Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

  • M3 Male/Female Threaded Hexagonal Brass Spacer.
  • 5mm A/F across body, 10mm body length, 6mm male stud.
  • Nickel plating for corrosion resistance.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Female

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Nickel

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

1.718g

Overall Dimensions (L x W x D) in mm:

16.00 x 5.00 A/F Hexagon

Body Length:

10.00mm

Male Stud Length:

6.00mm

Thread Size:

M3

Availability

35,928 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 13813
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 10448
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 3395
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2359
Distributor Newark
Location USA
Quantity (Updated Daily) 2068
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1700
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 1400
Distributor Newark
Location USA
Quantity (Updated Daily) 703
Distributor Genalog
Location Europe
Quantity (Updated Daily) 25
Distributor Anglia
Location Europe
Quantity (Updated Daily) 17

Questions & Answers Ask a Question

Do your metric spacers come in 0.5mm increments?

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - R30-300.pdf

ZIP

R30-3001002 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for R30-300 series
