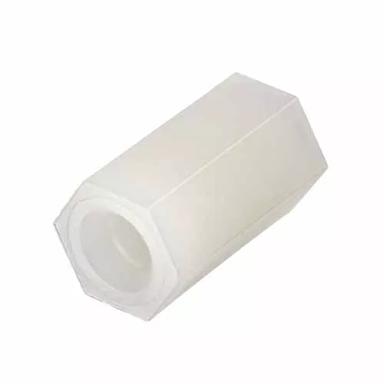

M3 Threaded Hexagonal Plastic Spacer, 5.5mm A/F.
15mm body length.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Housing Material:
Polyamide (Nylon) 66
Flammability Rating:
UL94V-2
Packaging Style:
Bulk/Loose
Housing Colour:
White
Dimensions
Weight:
0.339g
Dimensions:
15.00 x 5.50 A/F Hexagon
Body Length:
15.00mm
Thread Size:
M3
Downloads
Technical Documentation
Technical Drawing / Datasheet - R30-161.pdf
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R30-161 series
RoHS - R30-1611500
