Image may be representative. Refer to the product title for more information.

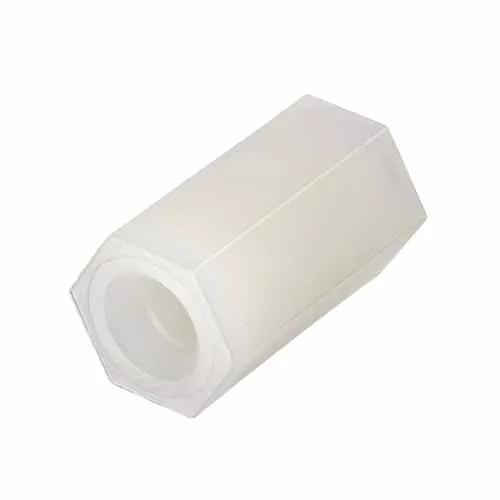

5.5mm A/F hexagonal Plastic spacer / pillar / standoff - M3 thread female-female (through threaded).
8mm body length.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
Technical Drawing
View
TraceParts
CAD/ECAD
TraceParts
3D Viewer
Supplyframe
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
Connector Orientation
Straight
Country of Origin
TW
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Housing Material
Polyamide (Nylon) 66
Flammability Rating
UL94V-2
Packaging Style
Bulk/Loose
Housing Colour
White
Dimensions
Weight
0.181g
Dimensions
8.00 x 5.50 A/F Hexagon
Body Length
8.00mm
Thread Size
M3
Downloads
Technical Documentation
Technical Drawing / Datasheet - R30-161.pdf
Outgassing data for Harwin products (plastics)
Product Information
Product Training Module - Overview of the Hardware products (Spacers + Terminals + Shorting Links)
Environmental Compliance
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for R30-161 series
Harwin REACH Statement - R30-1610800
RoHS Declaration - R30-1610800
