Active Product

R30-1610700

7.00mm M3 Metric Threaded Hex Plastic Spacer/Pillar

Hardware - Spacer (Standoff, Pillar)

Order Sample

Add to Favorites

In stock Check availability

3 similar products View products

Traceparts account required

Product Description

M3 Threaded Hexagonal Plastic Spacer, 5.5mm A/F.
7mm body length.

R30-1610700 - 7.00mm M3 Metric Threaded Hex Plastic Spacer/Pillar

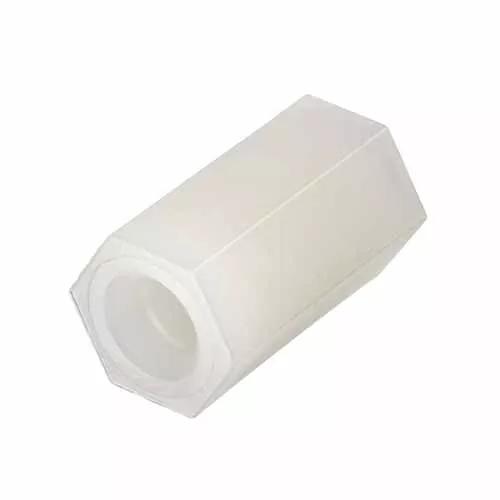

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Gender:

Female

Housing Material:

Polyamide (Nylon) 66

Housing Colour:

White

Housing Material UL Rating:

UL94V-2

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.158g

Overall Dimensions (L x W x D) in mm:

7.00 x 5.50 A/F Hexagon

Body Length:

7.00mm

Thread Size:

Frequently Asked Questions Ask a Question

Sorry, but our metric spacers are all in 1mm length increments. Please check the Technical Drawing/Datasheet for specific sizes listed in this product range.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
